Atari 1040STf/520STm

This is a semi-professional grade 16-bit computer from 80s. It's CPU is MC68K at 8MHz, the same as first Apple Macintosh computers. It has 1MB of RAM (512K in 520ST) and built-in floppy drive. These machines were quite expensive for its time, but in Poland there were some users. In first versions, the only instructions in ROM was "Read OS from floppy disk", like in Amiga, but in later versions OS is stored in ROM chips, so it runs automatically. Downfall of this solution is that OS upgrade requires EPROM re-programming or booting from floppy.
Atari 1040 was known as good computer for making music because it had MIDI interface built in. Characters after ST specifies type - F means integrated floppy drive, M is for RF modulator.

Manufacturer Atari

Origin U.S.A
Year of unit 1989
Year of introduction 1986
End of production 1993
CPU Motorola MC 68000
Speed 8MHz
RAM 1MB
ROM 192kB (TOS) or 32kB (Boot)
Colors: 512
Sound: YM2149 chip, MIDI
OS: TOS in ROM or floppy.
Display modes: Text: 40/80x25 simulated
Graphics: 320x200x16, 640x200x4,  640x400x2 (special monitor needed)


520STm:


Media: Built-in 3.5" FDD (1040STf)
External 3.5" FDD
Optional external HDD.

Power supply:

Built-in switching power supply unit in 1040.

520ST: External power supply:
Male DIN 7-pin at computer:

1,6 - +5V DC (~3A)
4 - +12V DC (~100mA?)
2 - N.C.
5 - -12V DC (?~100mA?)
3,7 - GND
I/O: Serial port (RS232)
Centronics
Hard disk port (dedicated, ACSI)
Ext. floppy disk
RGB
Joystick, Mouse
Cartridge expansion
MIDI ports









Possible upgrades: Many upgrades and h/w mods.

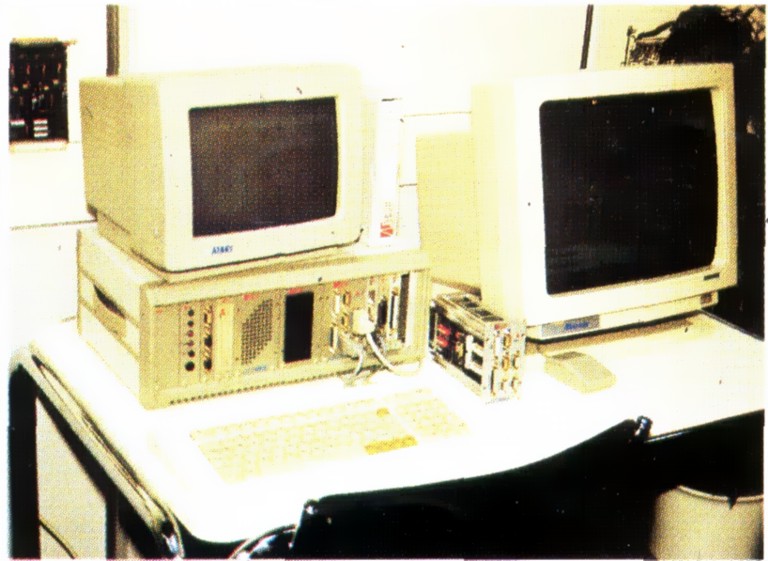

Atari ST as an industrial computer - from Bajtek, 1991

Peripherals in collection:
 - Atari SM124 monitor
 - my Universal mouse works well with these computers.
 - Atari SH-205 hard disk

Software accessibility: Quite Easy (TOSEC, old, abandoned sites)

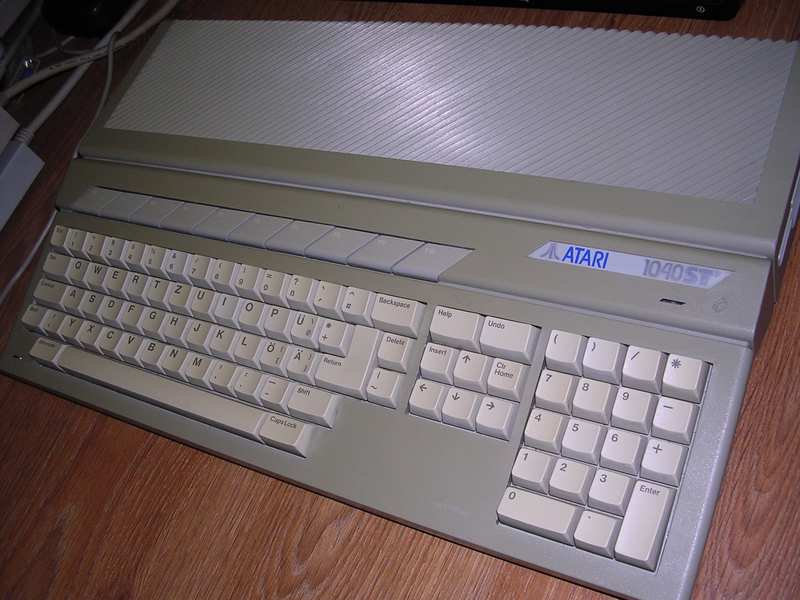

My 1040 unit is a German one, with German keyboard and TOS. I don't have an original mouse and monitor for this computer, but TOS works quite well and it runs programs.

My 520ST is from United Kingdom and it has PAL UK modification for modulator. I don't have floppy disk drive for it, but pinout looks quite compatible with PC.

Contents: Starting Repair Making floppies Mouse Serial, FDD, parallel Video connector Links

Starting:

After power-up it will display clear screen and will try to boot TOS from floppy. If it fails (no floppy in drive), it'll try to load TOS from ROM. Anyway, you should end with TOS loaded. It may probe the drive for a minute or longer, to make this time shorter you can format a blank floppy and place it in drive during power-up.

In most cases you can drive cursor by keyboard arrows and Alternate key.

Repairing mouse/joystick connectors:

Atari ST has mouse/joystick ports in a strange place, making it difficult to plug and unplug connectors. After more than few years of plugging/unplugging these connectors may break off. If these ports don't work and moving or pushing connector makes it work for a moment - it's a problem with connector soldering.

To fix it, you must resolder connectors. It's good to clean keyboard contacts too. Here's how to do it:
1. Remove screws from the bottom of Atari. Don't remove 3 screws keeping floppy drive in place.
2. Remove upper cover by lifting its left side and sliding a bit to the right, as it's kept by FDD on the right.
3. Carefully open keyboard upwards, disconnect it from mainboard.

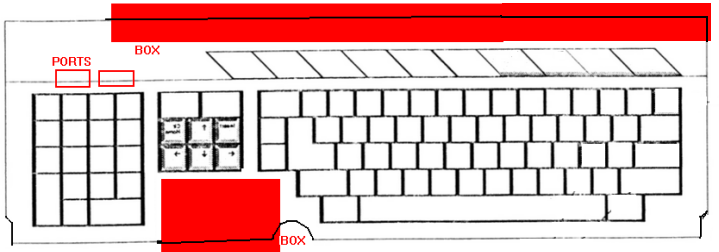

4. Find two boxes, at least 5cm (2in) high. Place the keyboard KEYS FACING DOWN on these boxes so that none keys are pressed. Here's a picture of this alignment (keyboard shown FROM THE REAR):

5. Remove keyboard from boxes, now remove all screws from the back. Lots of smaller ones and two larger, holding mouse/joystick ports with metal part. These screws behind transparent plastic cover must be removed too. Carefully place the keyboard in boxes and pry the printer circuit board out.
6. Do not open the board (PCB) in any direction because you may damage LEDs. Just lift it vertically, and few centimeters above flip to the other side. Some rubber pads will be on the PCB, some in plastic frame.
7. Take all rubber pads from PCB (don't touch inside of them!) and place them into holes in frame. Missing one rubber pad? Return key has two holes, but usually only one pad, doesn't matter in which hole. No key must be pressed during this operation or the pad will fall out.
8. Having free PCB, you can repair solders of connectors. If any track is torn from PCB, you have to use piece of wire formed in a loop in one of its ends to replace missing track part. After correcting soldering make sure (with ohmmeter) you haven't made any short circuits!
9. You can clean keyboard gold parts using cloth with denaturated alcohol.
10. Carefully place the PCB back on the frame, vertically, aligning LEDs first, small plastic alignment pins next. Replace all screws. Now you can lift the frame from boxes and check aren't any keys stuck inside (if there is - rubber pad is missing).


Making system floppies:

You can make system floppy disks with normal 3.5" floppy disk drive in PC. However, there are two things you must know:
 - Double density disks (DD, 720kB) which are working in Atari are different than High Density (ND, 1.44MB) disks in PC. First thing you need to do, is covering the hole opposite to write protection hole. Second - is special formatting. In DOS/Windows 9x you just use:

FORMAT A: /F:720

but in WinXP:

FORMAT A: /t:80 /n:9

You'll get a blank floppy barely usable on ST.
Writing disk images is easier - you just use FloImg utility from here.
So you'll end with disk, which may be or may be not readable by ST, but writing to disks formatted in PC will be a problem. Why? HD drive writes much stronger than DD, and DD may have problems with physically overwriting magnetized places. To make floppy friendly to DD drives, you have to totally neutralize magnetization of the HD floppy and re-format it in Atari. Just use an AC coil the same way it's used to demagnetize tape recorder heads or CRTs. You turn it on a few meters away from floppies, move it slowly towards it, next de-magnetize by putting it closer with circular moves. When finished (2 minutes will be more than enough) turn it off but do it with coil few meters away disks. Now they're ready to be re-formatted. WinXP may display some errors, but Win98 works well.

Now about the disk images: There are usually a few games on one disk. These are called Menudisks, because they boot to menu which makes you able to choose game. These are of course illegal releases. Legal ones occupy just one disk (or two if game os bigger).

There are two popular ST disk images. just .st extension is a typical disk images, they can be started in emulator or written to floppy. STX image format is like G64 for Commodore 64 - it's not a dosk image, but exact recording of magnetic flux timings. Although it really can be useful while emulating copy-protected games, it cannot be normally written back to floppy.

Up





Mouse

Here is brief description of mouse pinout. Connector is DB9 male on the computer:

Mouse
1 -X axis B
2 -X axis A
3 -Y axis B
4 -Y axis A
5 - Middle button*
6 - Left button
7 - +5V DC
8 - GND
9 - Right button		 Joystick
Up
Down
Left
Right
Reserved
Fire
+5V DC
GND
Not connected

* - Not connected in ST.

As Amiga Mouse directly connected works, but in bizarre way, it's possible to make my universal mouse working with it.

Up





Serial, FDD and parallel communication

The computer has 2a serial and parallel Centronics port.
Serial port is a standard one, with pinout described in Wikipedia here, DB-25 female connector. The only difference is that pin 6 is not connected.
Centronics is also a standard port with Strobe, 8 data lines, Busy and ground placed as in standard in female DB25.
(1 - strobe, 2-9 - D0-D7, 11-BUSY, 18-25 - GND)

External FDD has the following pinout:

  11  10
 9      8
7 13  12 6
 5  14  4
   3 1 2
(looking at connector on the rear of ST)

1  RD    Read Data
2  SIDE0 Side 0 Select
3  GND   Ground
4  INDEX Index
5  SEL0  Drive 0 Select
6  SEL1  Drive 1 Select
7  GND   Ground
8  MOTOR Motor On
9  DIR   Direction In
10 STEP  Step
11 WD    Write Data
12 WG    Write Gate (write enable)
13 TRK00 Track 00
14 WP    Write Protect

Up







Video connector

It's possible to connect VGA monitor there, but frequencies are quite strange, so not all old VGA monitors will go.
Anyway, it's 13-pin DIN connector:

1 - Audio Out
2 - Composite Sync
3 - Clock Select (programmable o/p)
4 - Monochrome detect/Clock in (STE)
5 - Audio In
6 - Green
7 - Red
8 - 12V for some monitor switches
9 - Horizontal Sync
10 - Blue
11 - Monochrome
12 - Vertical Sync
13 - Ground

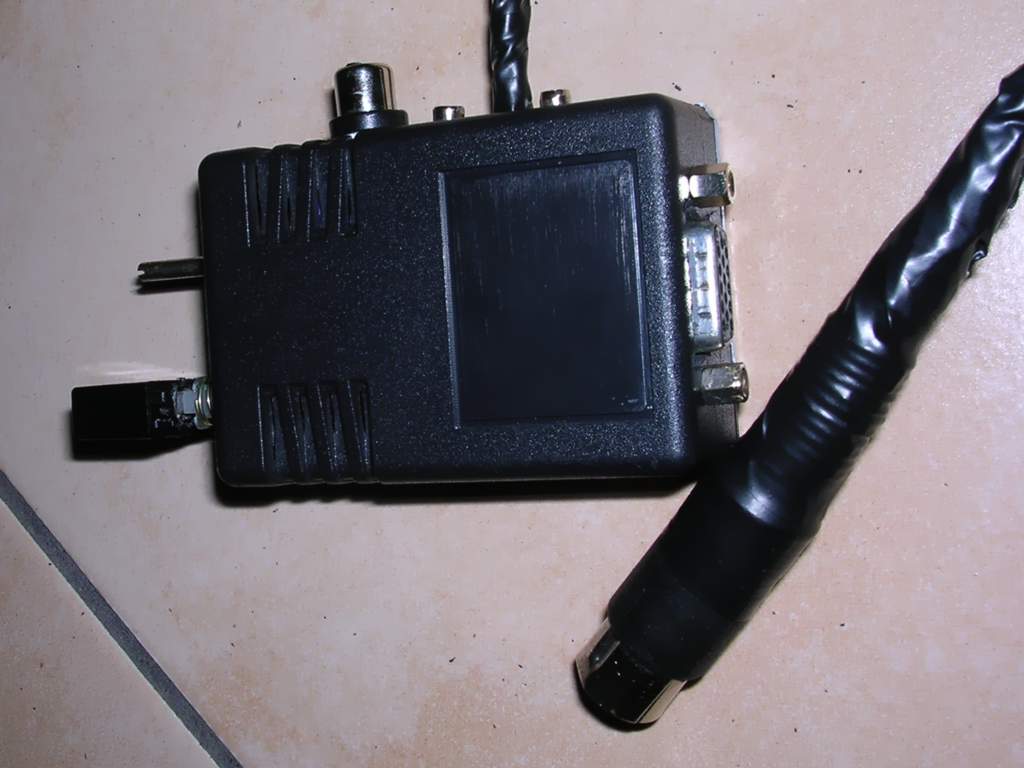

This is a monitor switch, allowing to connect VGA monitor to ST. Color mode doesn't work properly in most cases as it requires unusual scanning frequency.

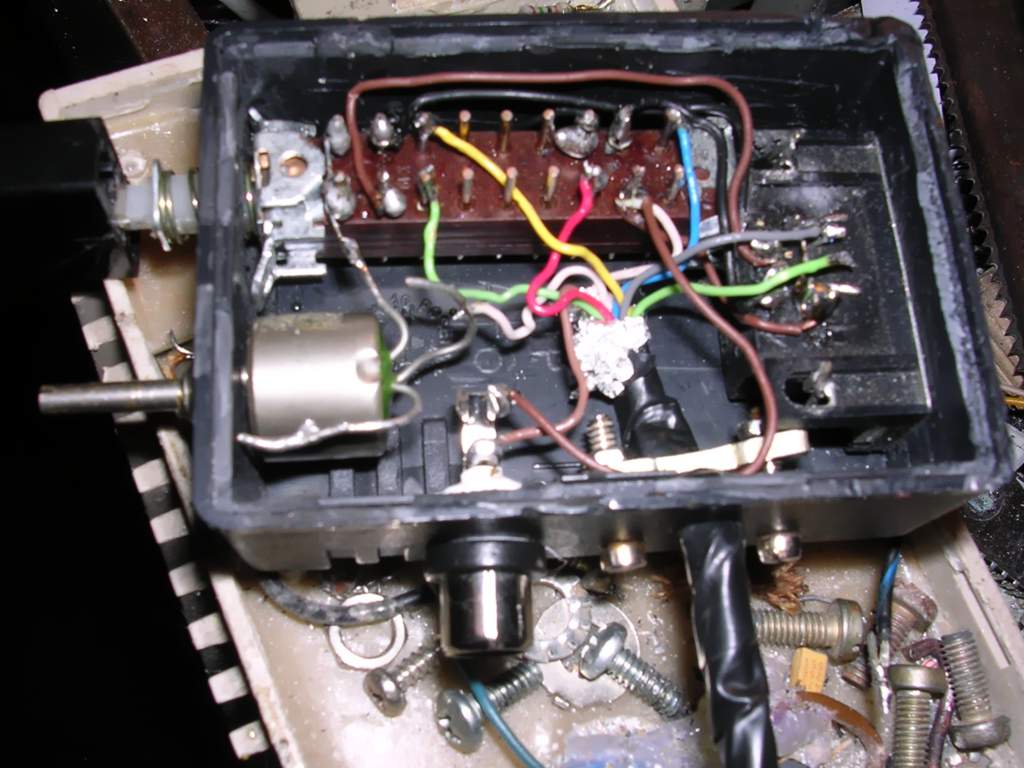

Here are 2 photos of a working converter:

Up





Links:

http://www.atari.org/hosted/quickfaq/  - Atari ST Quick FAQ - everything you want to know about ST. Many links are dead, so just search for files.
http://animefin.animeunioni.org/~mikil/atari_st/  - some txts
http://www.lysator.liu.se/~celeborn/sync/atari/  - More TXTs
ftp://ftp.datavase.info/atari/DOCS/  - between 00:00 and 08:00
http://atari4ever.free.fr/  - LOTS of hardware hacks
http://atari.wroclaw.pl/tos.html  - Polish TOS - Tu możesz ściągnąć TOSa po Polsku
http://www.atari.st/  - Game database with screenshots, descriptions, music, no download.
http://dev-docs.atariforge.org  https://www.dev-docs.org/docs/ -  Many documents related to Atari hardware, software and programming
http://acm.xf.cz/  - Pinouts of Atari ST computers
http://web.archive.org/web/20080113194644/http://oldcomputers.net/stacy.html - Information about rare ST as a laptop.
http://web.archive.org/web/20031002024945/http://www.vanc.igs.net/~roughley/tos_main.htm - History of TOS operating system on Atari ST computers.
http://web.archive.org/web/20040805131328/http://members.madasafish.com/~aseabrook/atari/ - This can be a good place to start exploring dead web pages archived in Internet Archive. Today, you'll find more information there than in "living" Internet.

Software:
http://www.umich.edu/~archive/atari/ - Much software
http://ftp.lip6.fr/pub/atari/  - More
http://sites.google.com/site/stessential/  - Many applications.
http://emulatari.free.fr/  - Games library, in French (click Jeux Atari ST and you should know where to go next)
http://web.archive.org/web/20101010000046/http://membres.multimania.fr/falkweb/utsi.htm  - Atari programmer's site with some programs. [DOWNLOADS GONE]
http://ahladnik.free.fr/  - another game collection - Recently something redirected from this site, visit with NoScript.
http://web.archive.org/web/20160307143337/http://thegamearchives.net/?val=0_2_1_0_0_4_25_0_0_0_0  - Games for many platforms, including Atari ST
http://d-bug.mooo.com/  - Games


SIMM RAM expansion?
