Pinwheel arithmometers

Early arithmometers were built by clockmakers in XVII century. One of the first was Schickard arithmometer, built in 1623, destroyed in fire 1624, half year after finishing its construction. More known arithmometers were Pascal's Pascalina (there was a moment Poland had half of world's computers: two Pascalinas!), smaller device invented by S. Morland and Leibnitz multiplying machine, which was more similar to modern arithmometers.

In 1709 Giovanni Poleni built first arithmometer with pinwheel mechanism to select numbers. In 1727 Antonin Braun from Austria modified Poleni's design to use crank instead of weight mechanism (like in old clocks) which made arithmometer smaller. After Braun's design demonstration, Poleni destroyed (or was forced to destroy - as can be read in older, especially German documents) most of his machines.
Later many arithmometers used sliding wheel with stepping protrusions, a completely different mechanism.

G. Polleni.

Revolution came in 1890, when W. Th. Odhner, Swedish engineer working in Russia, started to manufacture pinwheel arithmometers en masse. These arithmometers, invented 15 years earlier, were much cheaper and simpler, so they became available for offices or bureaus. "Odhner arithmometers" or "Brunsviga" arithmometers (clone) were manufactured in many factories to late 1970s. You can read more about Odhner arithmometers reading about Feliks arithmometer, as it's Odhner's clone.



Feliks arithmometer (Феликс)
After Soviet revolution in 1917 Odhner came back to Sweden, where he opened another factory. Nationalized factory in St. Petersburg was not manufacturing much until 1924, when it was moved and recommended by Feliks Dzerzhinsky, head of WChK (much later KGB) as calculating machines were essential in economy (well, especially for bureaucracy fanatics like Dzerzhinsky).
In late 1940s factory was moved to Kursk (during WWII all factories were moved to the east) and renamed to "Счетмаш" (Schyotmash) and they still manufactured arithmometers. This arithmometer was probably manufactured in early 1960s.
Unfortunately these arithmometers were manufactured using very low quality process. Because steel was needed for other purposes and brass was precious for industrial installations, they used worst quality zinc-based alloy to make pinwheel casings. This alloy is very brittle and now it's quite common in "Felix" that they have shattered inside of pinwheels - slider cannot be moved by any force (well, if you try with bigger tools you can only shatter a whole shaft). In fact this alloy should have never been mechanized, it was casting alloy. Any tries to mechanize it caused problems with breakings (inclusion-based or notch effect) and making cool down faster (to manufacture more parts in short time) made more inclusions in structure.

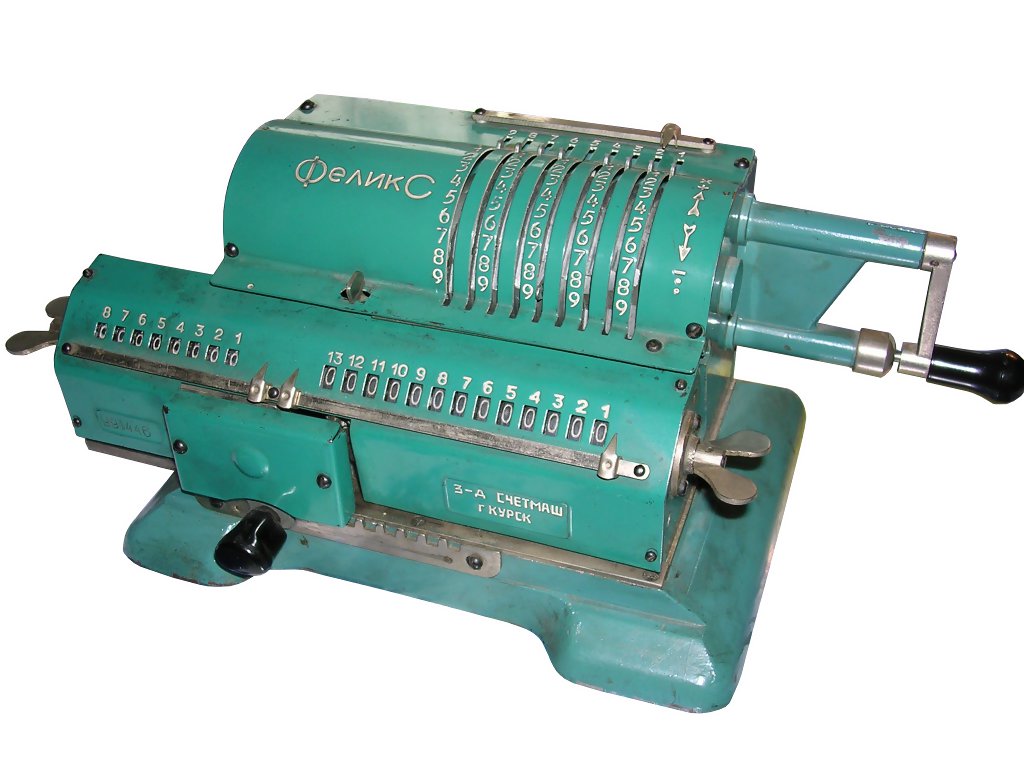

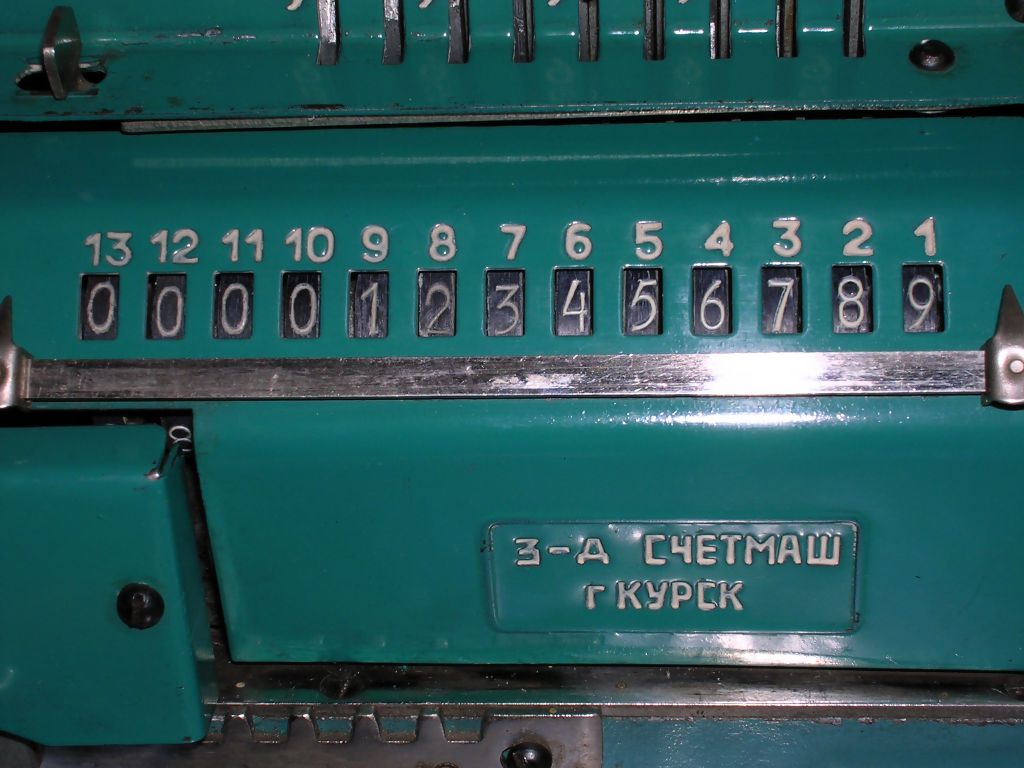

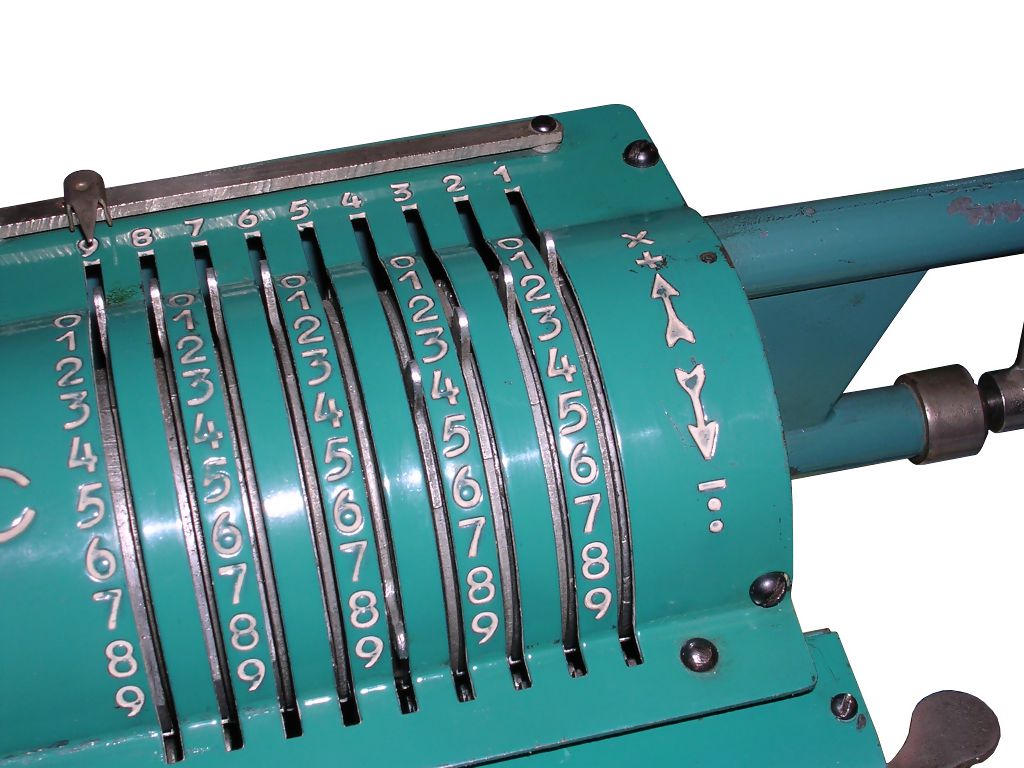

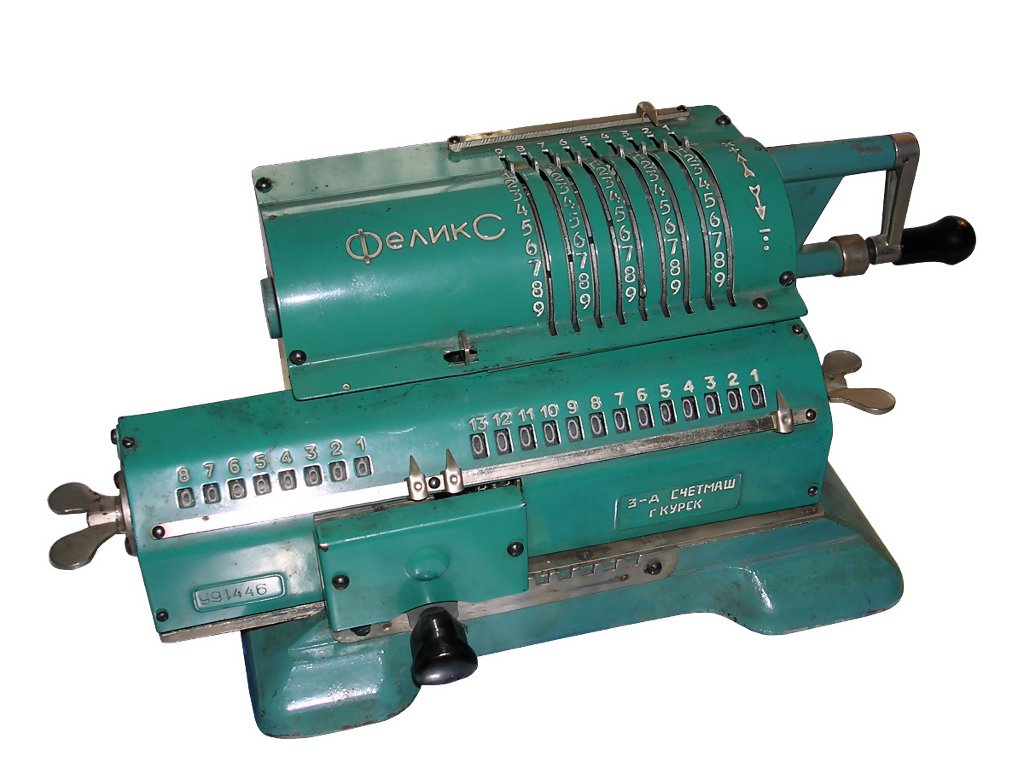

General view These butterfly nut is for setting 0 Numbers set to counter 1

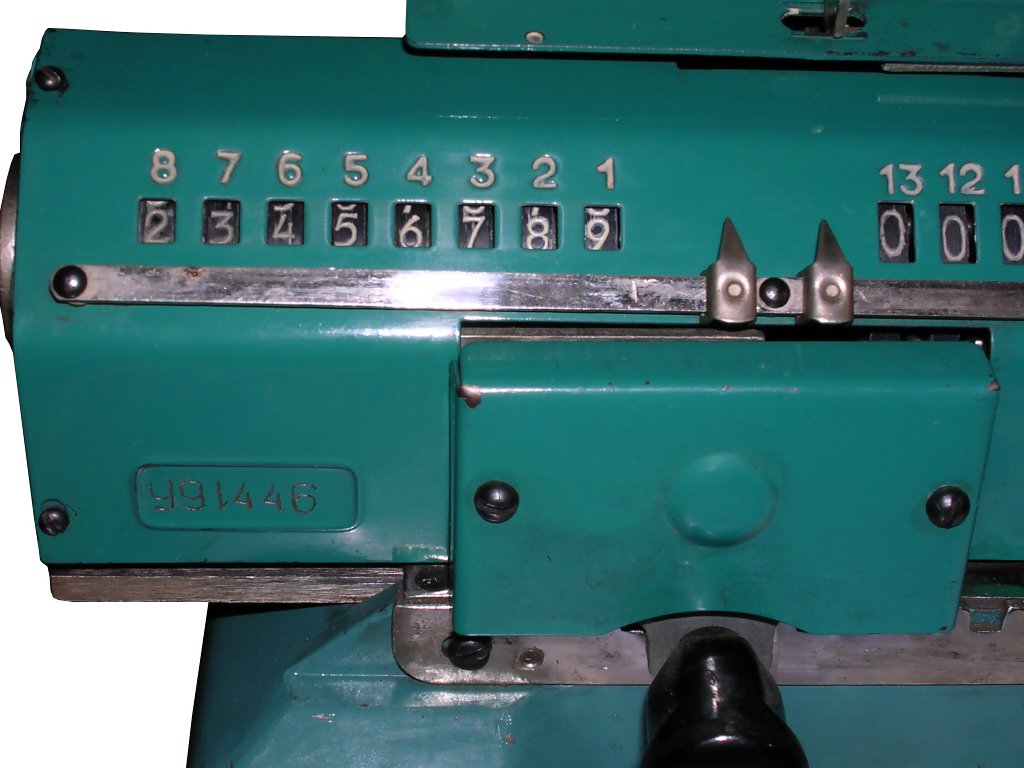

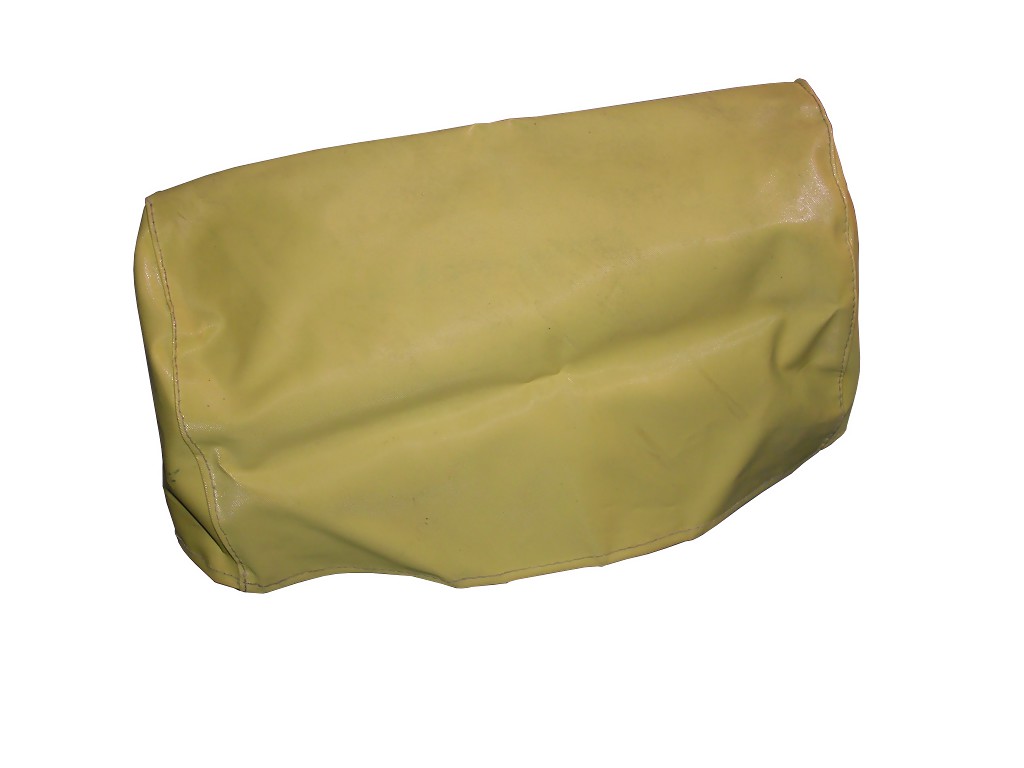

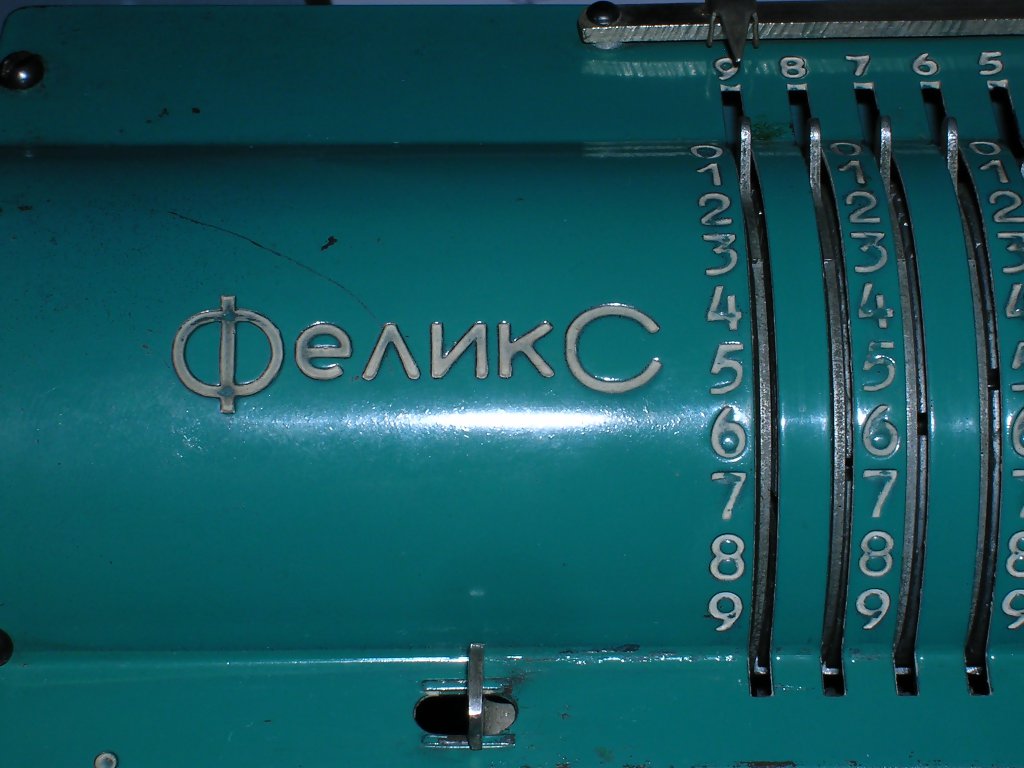

Protective cover Name engraved in case Rotations count and serial no

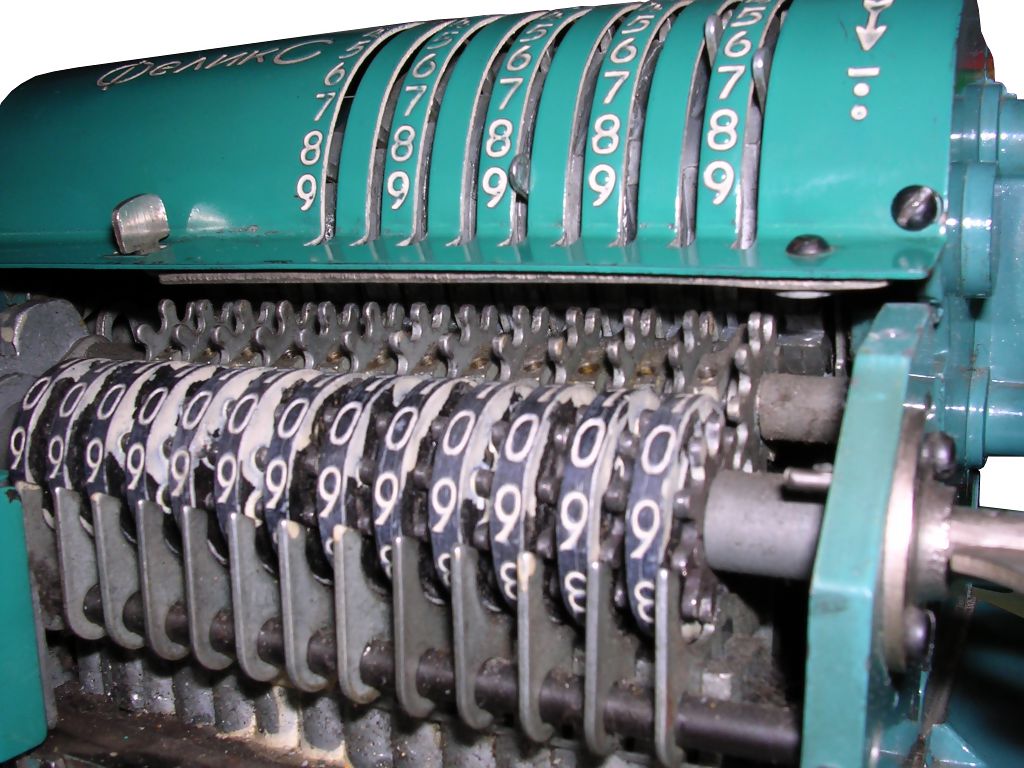

Secondary counter Carrier gears detail

Triumphator CRN2
Triumphator is an old German brand of arithmometers. Factory was established as "Lepiziger Rohrenwerke GmbH" in 1900 in Lepizig. In 1909 they started to use Triumphator brand and renamed factory to "Triumphator Rechenmaschinenfabrik GmbH". After 1948 they moved and renamed to "VEB Triumphator-Werk Rechenmaschinenfabrik Molkau/Lepizig", and operated under East German government. They probably stopped manufacturing arithmometers in 1965.
Triumphator CRN2 is one of their last arithmometers, as CRN1 was manufactured 1953-1959. It is more rigid than Soviet "Feliks" and use better alloys. It has also a few features not commonly seen in typical arithmometers.
 - A lever on the crank shaft changes shaft's direction without changing direction of spinning.
 - Two little levers on the right side of bottom counters can be used to exclude one of 2 counters from cleaning by pushing zero lever.
 - R button below these little levers - if pushed and counter III is cleared, number from counter III will be transferred to top counter. You should clear top counter before.
 - Shifting bottom 2 counters can be realized using push lever in the middle (freely) or with two-sided lever near crank shaft (stepping).
Some photos of other unit: http://public.beuth-hochschule.de/hamann/triumph/cnx/index2r.html

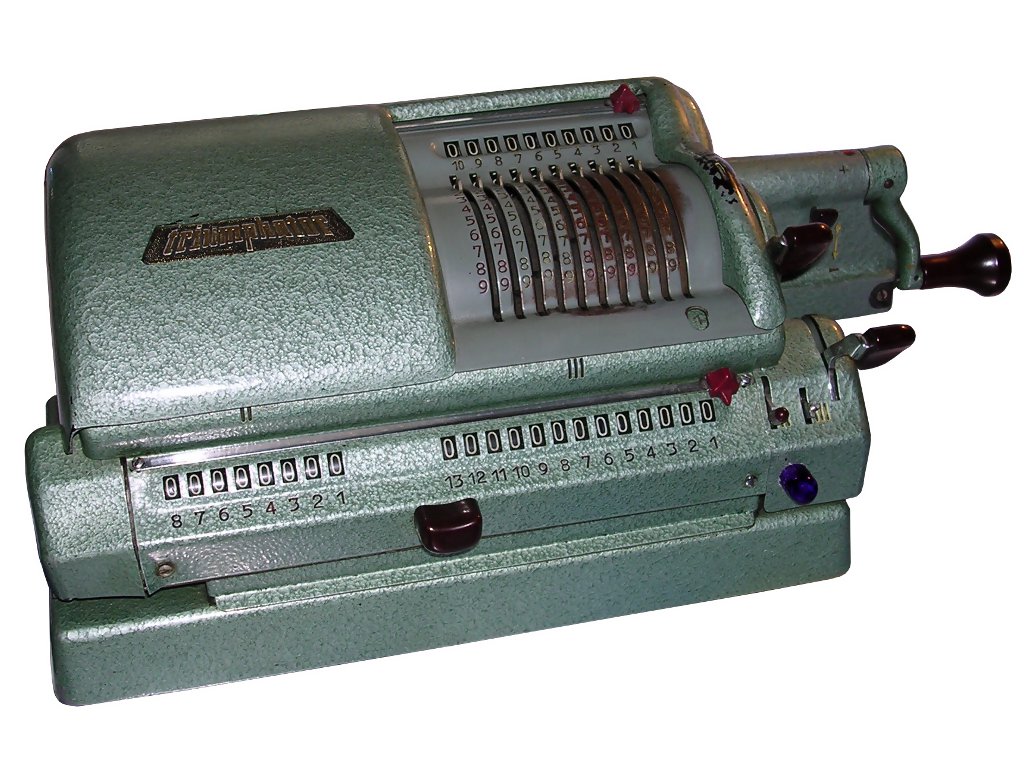

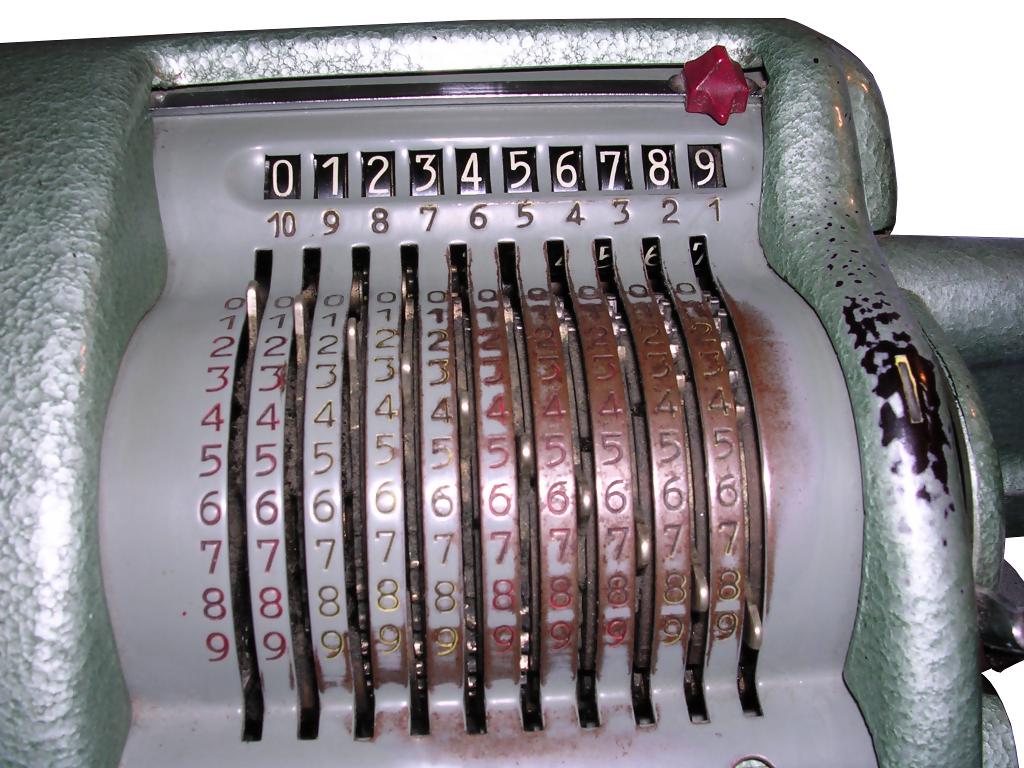

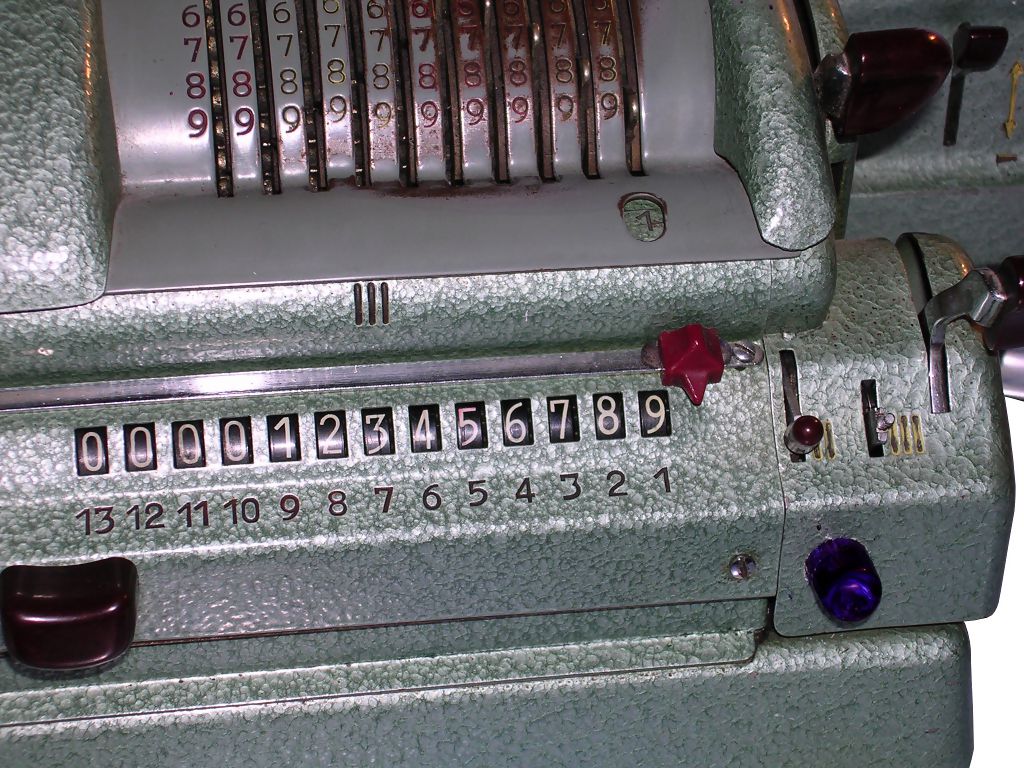

General  view Setting number in counter 1 Counter 3

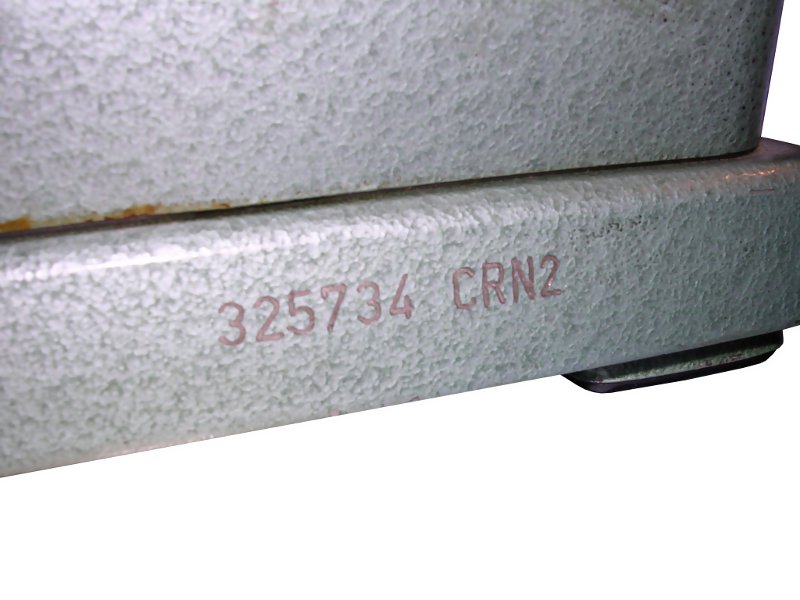

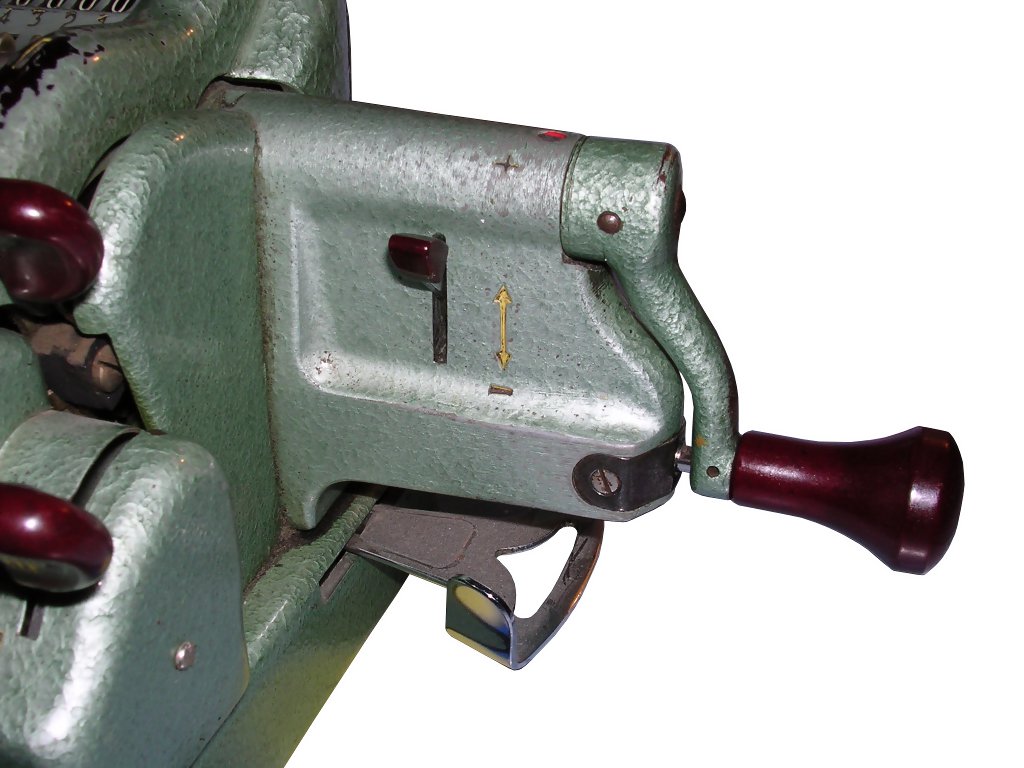

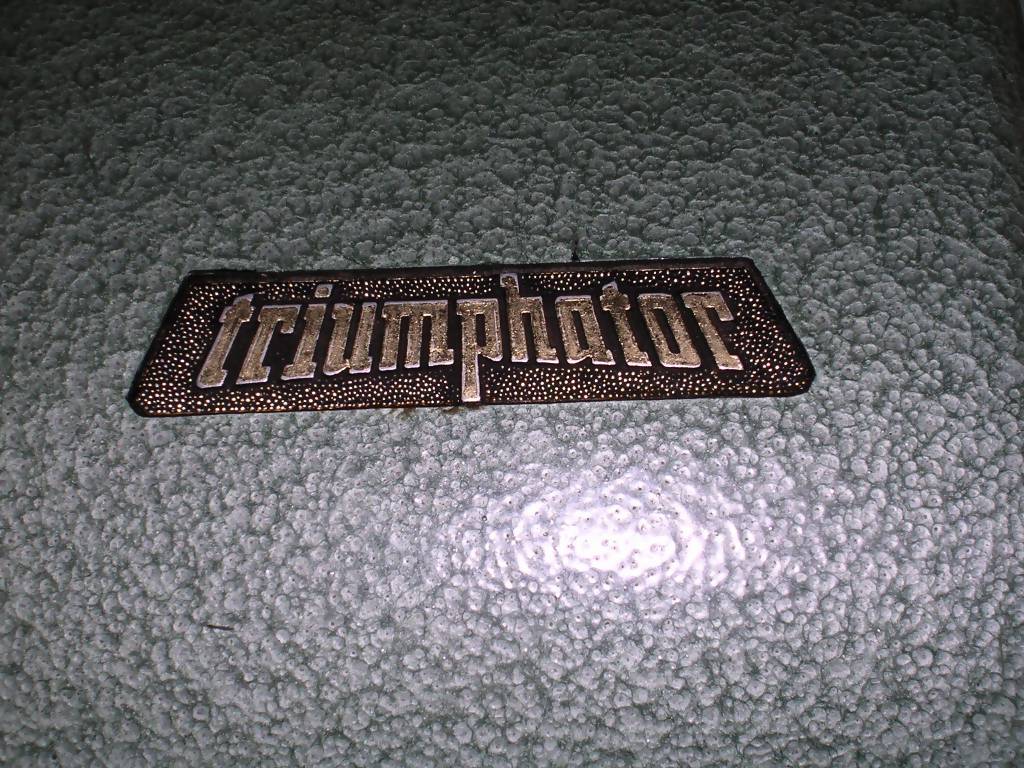

Direction switch Marking Serial no and type

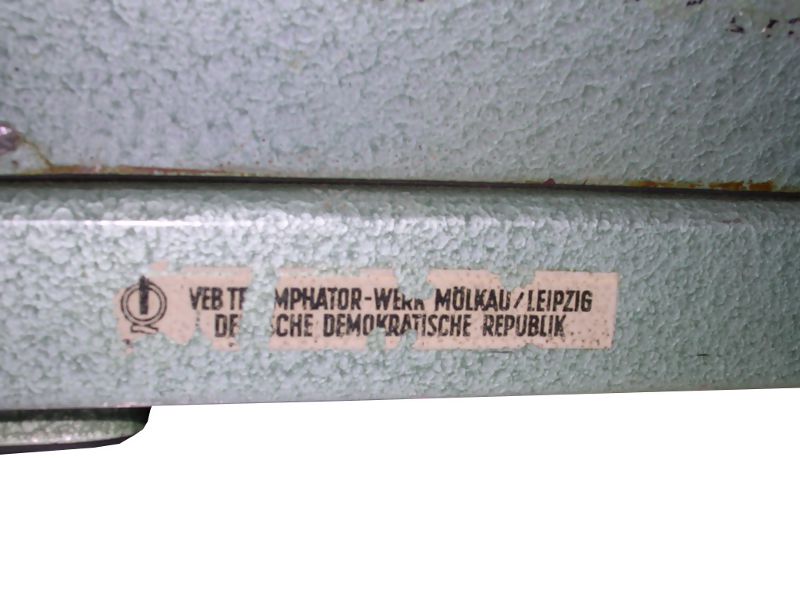

Manufacturer's sticker

Schyotmash WK1 (Счетмаш ВК-1)
Arithmometers with keys were developed since mid-XIX century, but keyboard mechanism was complicated, expensive and required additional actions: after pressing key it was needed to pull some lever to make ratchet or gear rotate other gears to set a number. You can see one of these mechanisms here. I don't know who invented arithmometer with combined action, but some very early models with similar technology were built in 1930s. Combined action means: Pressing a key causes distance delimiter to lock in digit (usually made in a form of two "segments") instantly, pressing it deeper makes gear move with delimiter, and, usually during key release, pinwheel block is shifted by 1 allowing new number to be introduced. Arithmometers with keyboards were manufactured in parallel with Feliks units - since 1960s, but they stopped making them long after Feliks - in 1980s.
It was still poor quality instrument, made of bad alloys and with poorly fitted mechanical parts. Typical problem, except many different jams, is with zero-setting ratchet, you have to manually set it to zero of gear with cut-through. Do not remove zeroing shaft because you won't put it back easily (if you put it back and some wheels don't go zero... good that you placed it back in wheels set). The main idea of operation is (if you see it you'll understand it better):
1. You pull the lever, ratchet rotates zeroing gear.
2. Zeroing gear is mounted on a spring, it's side is not flat, but has protrusion, near this side there's a circular ramp making gear go horizontally towards zeroing shaft (with spring! it does NOT put shaft in, only spins it!) as it rotates.
3. As ratchet rotates gear, gear is going horizontally towards shaft, ratchet finally meets cut-through.
4. Then ratchet comes back through cut-through, without rotating gear, lever is released.
5. Gear without ratchet springs back into its horizontal position ready for another zeroing.
If there's a problem with upper zeroing mechanism, horizontal position of ratchet should be checked. If ratchet moves horizontally with lever, parts are worn out.
If it works but needs much force, just use WD40, CX80 or similar grease in spray, use it a lot and try to lubricate all mechanism by rotating shaft.

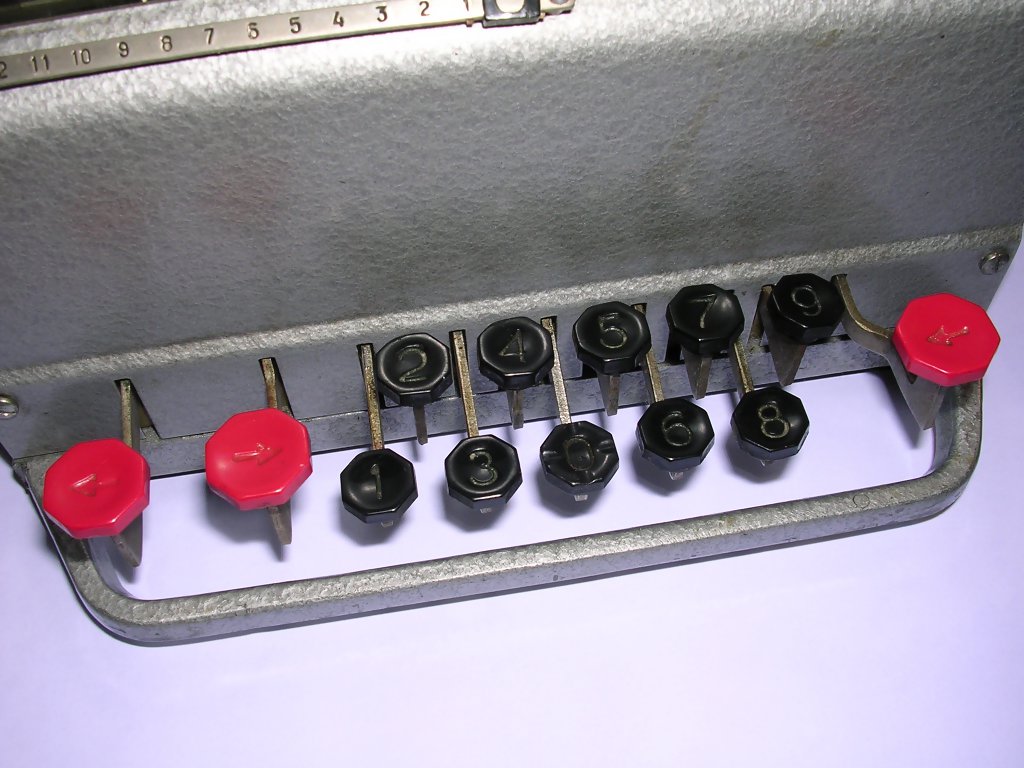

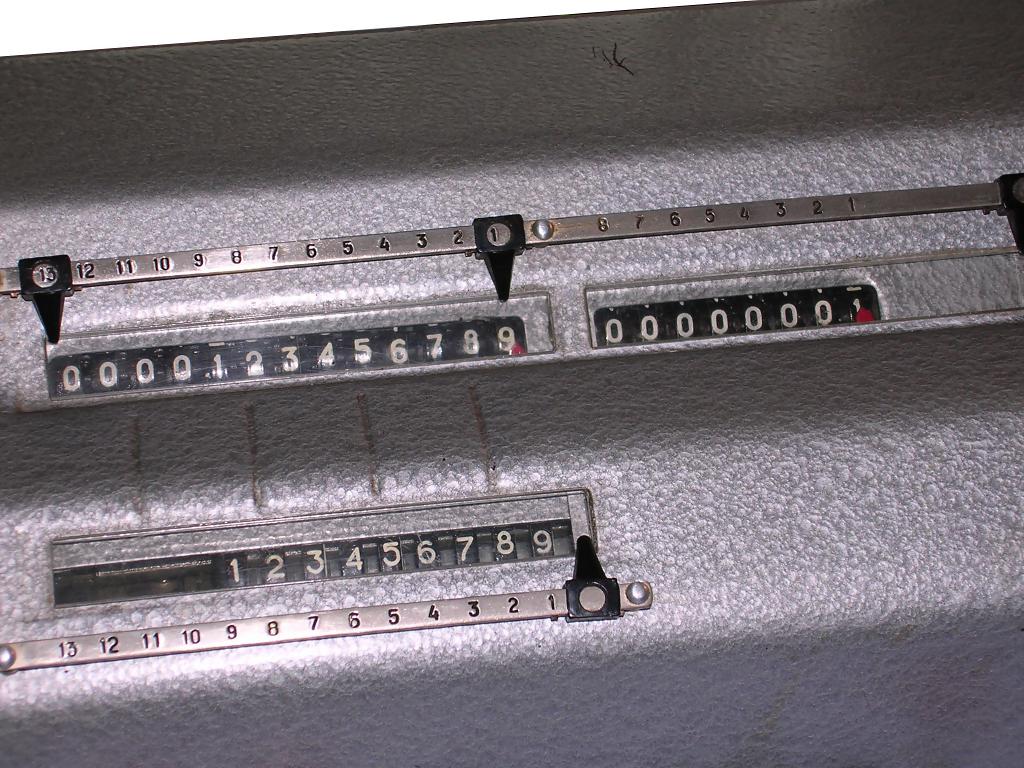

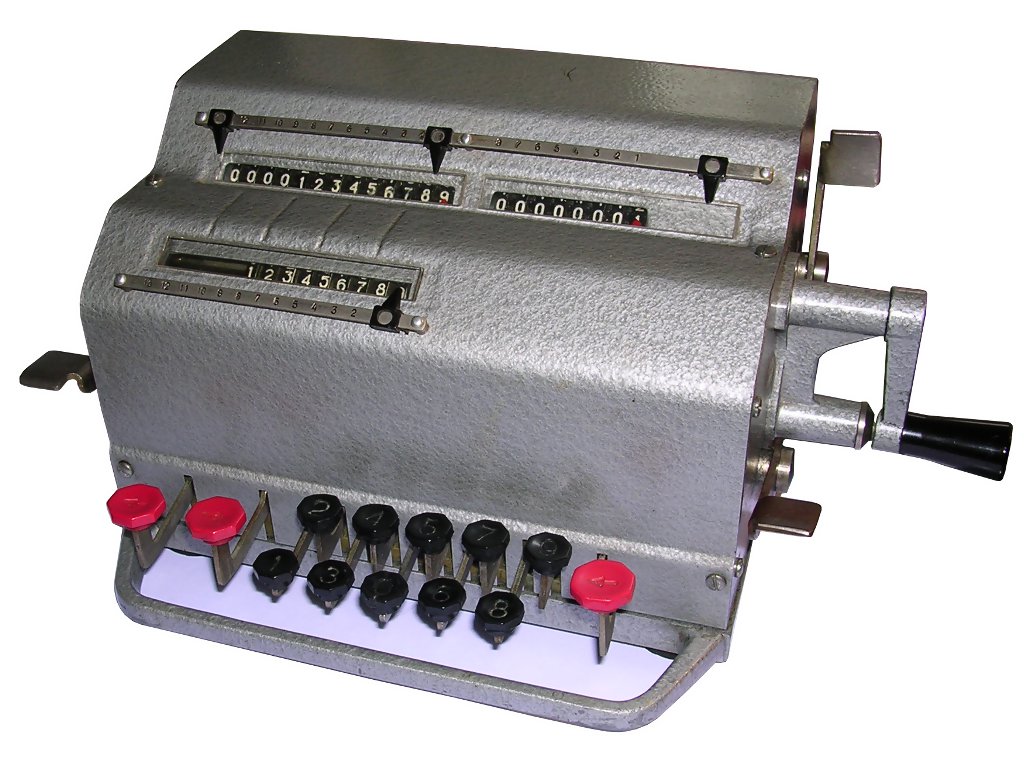

General view Counters Keyboard

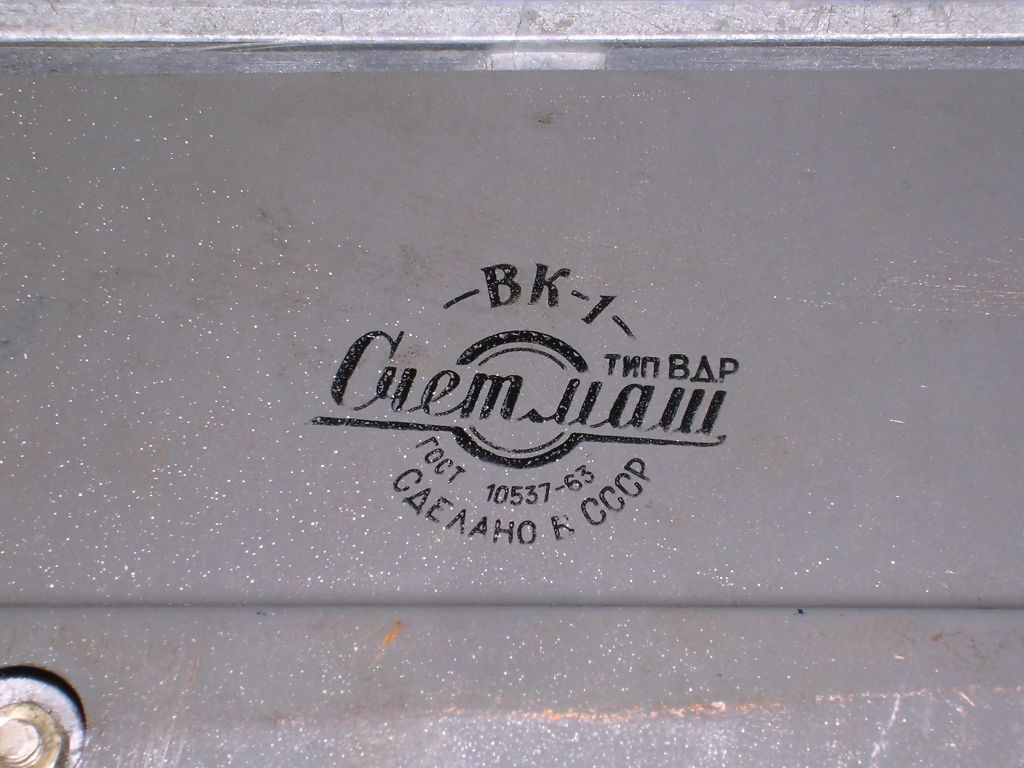

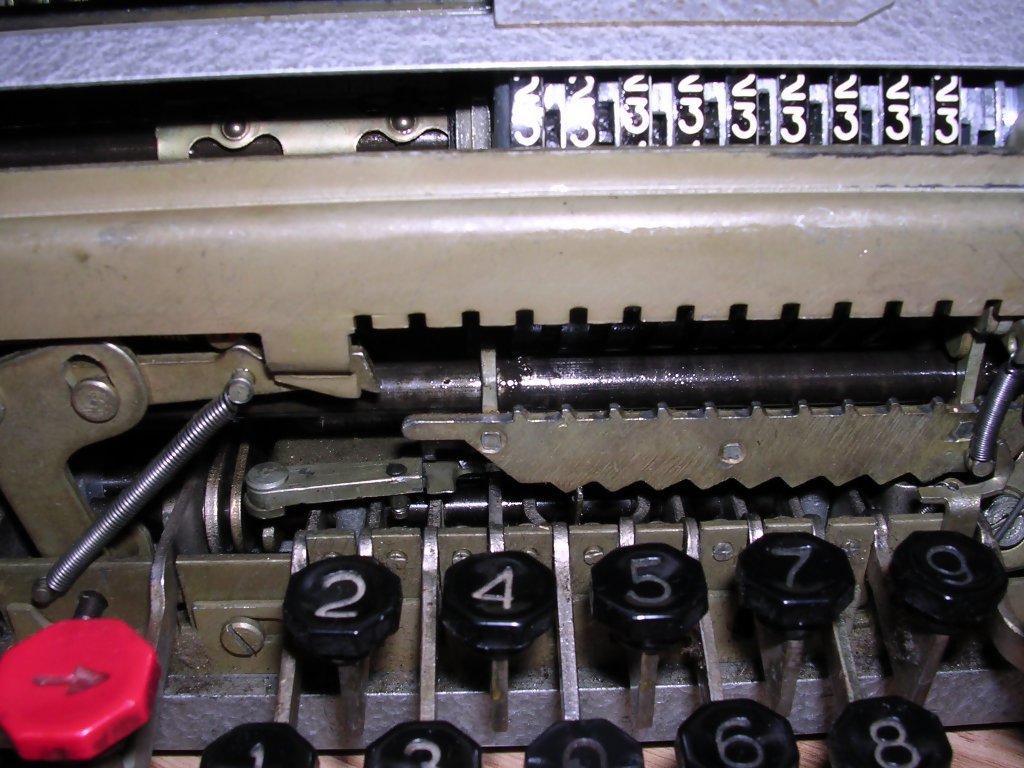

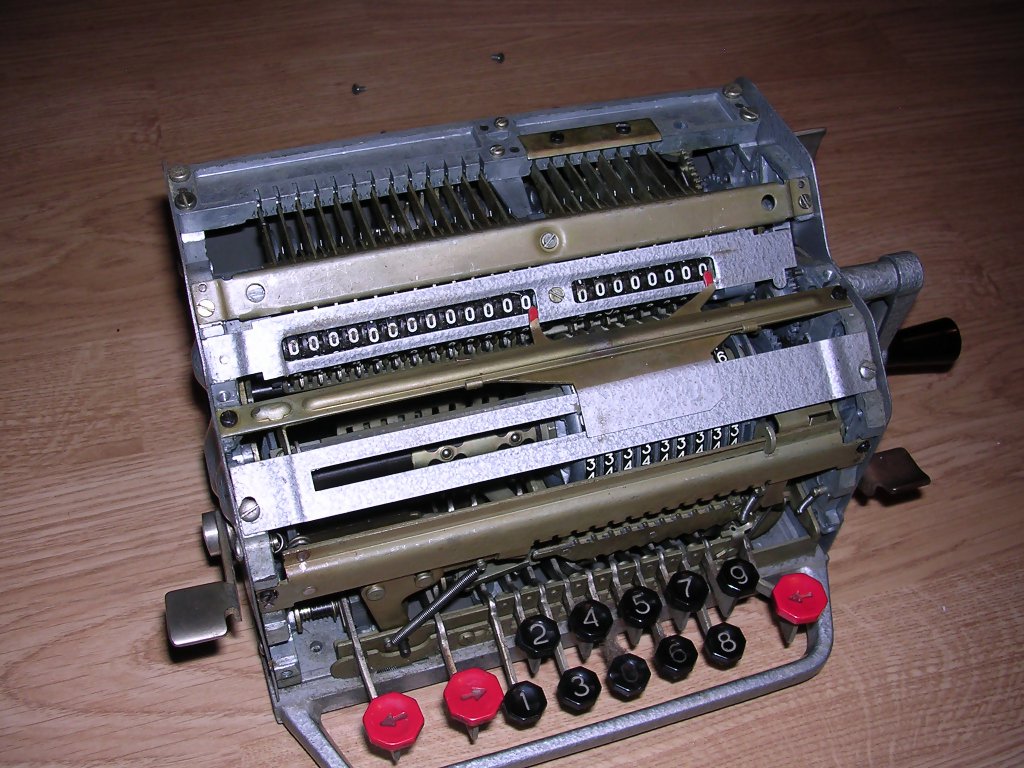

Manufacturer's stamp on the bottom Carrier moving mechanism Cover removed

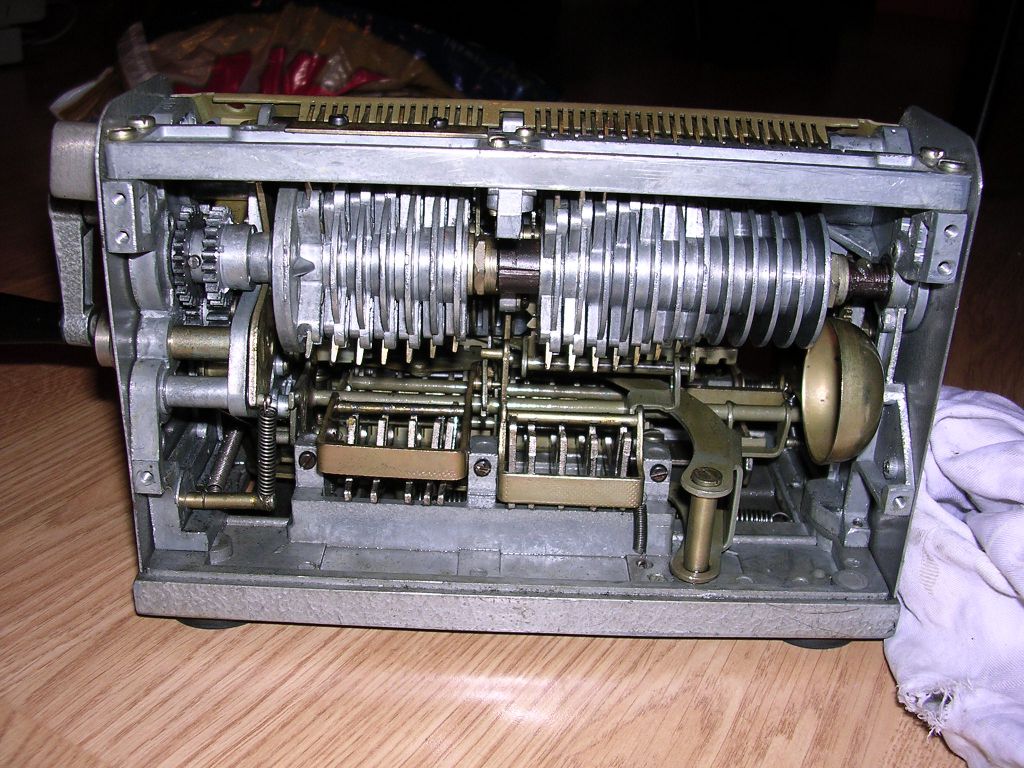

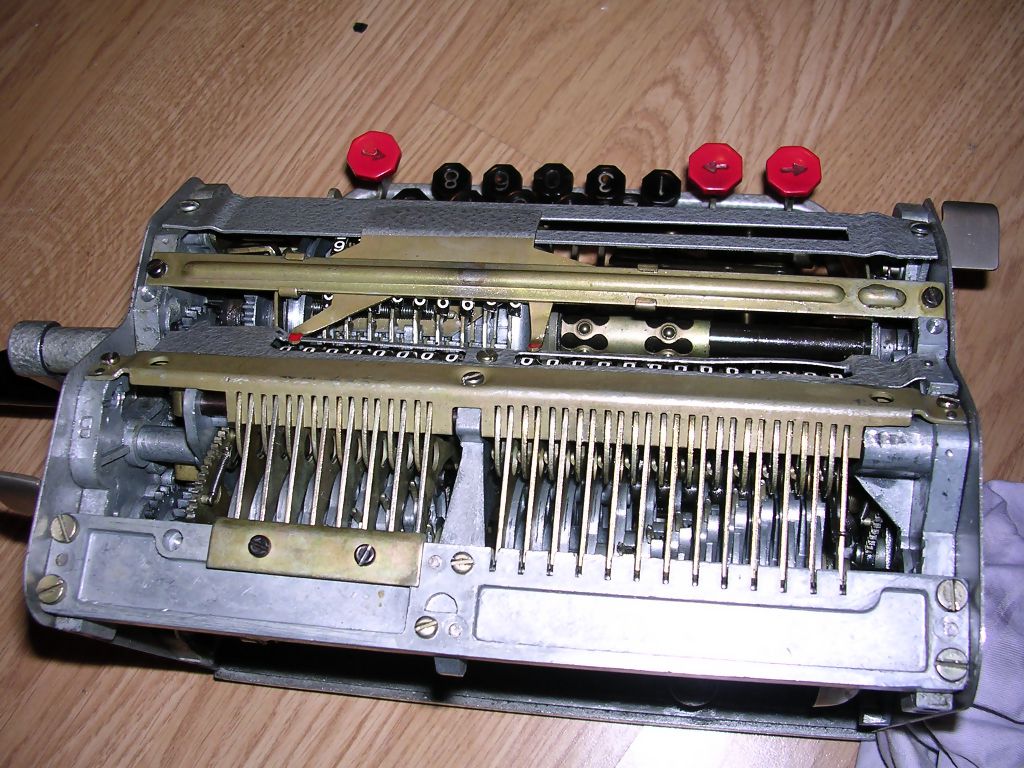

Pinwheels visible from rear Top view

Predom-Mesko KR-13
This unit is very similar to Soviet one, but it has better mechanism, works smoothly and has "look and feel" copied from Facit units. Inside it's much like WK1. It was manufactured in Mesko Skarzysko-Kamienna in Poland, (these times Mesko was making weaponry, sewing machines, arithmometers and lawnmowers were secondary products) under Predom Mesko brand (Predom was a cooperation of household devices manufacturers). These arithmometers were manufactured since early 70s, this one is labelled Mesko, not Predom-Mesko as these from late 70s and 80s, it's quite old unit.
This unit comes from University of Agriculture, I took it from their rubbish bin in early 2000s.

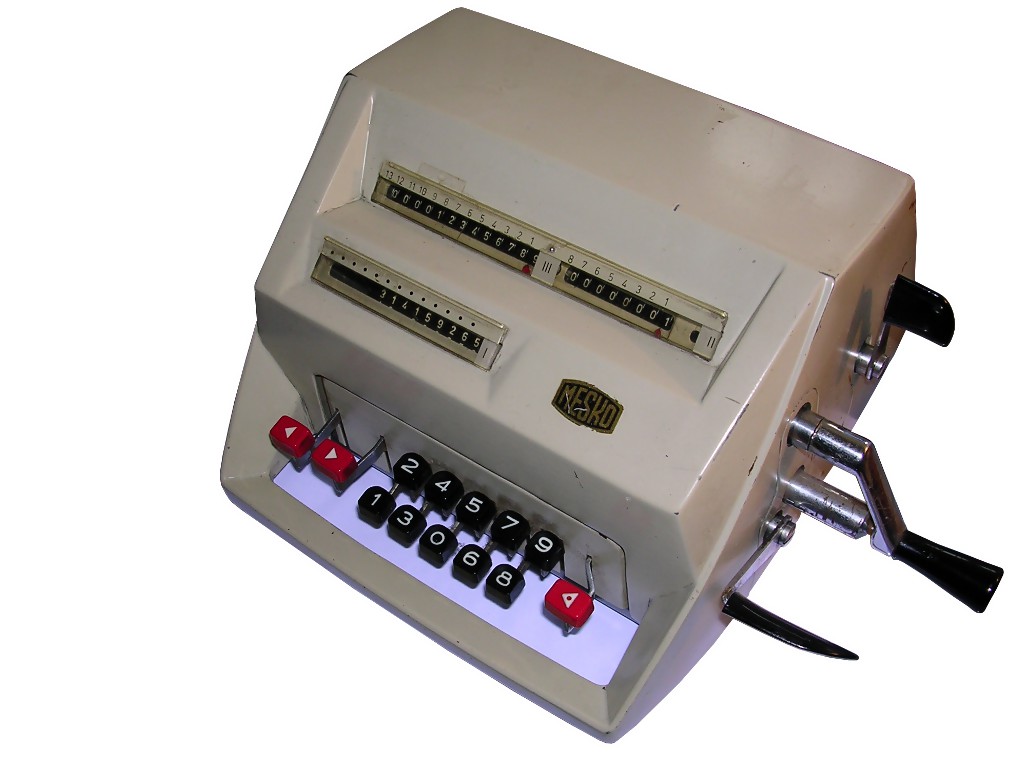

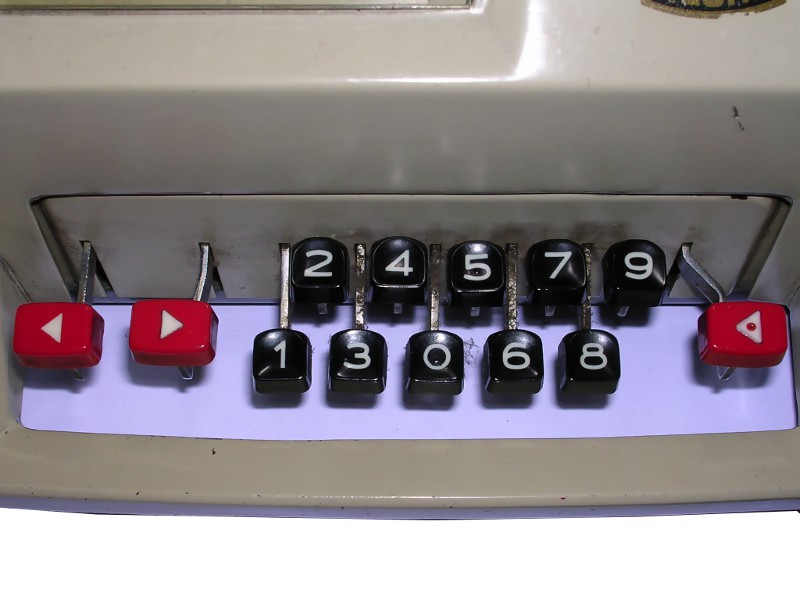

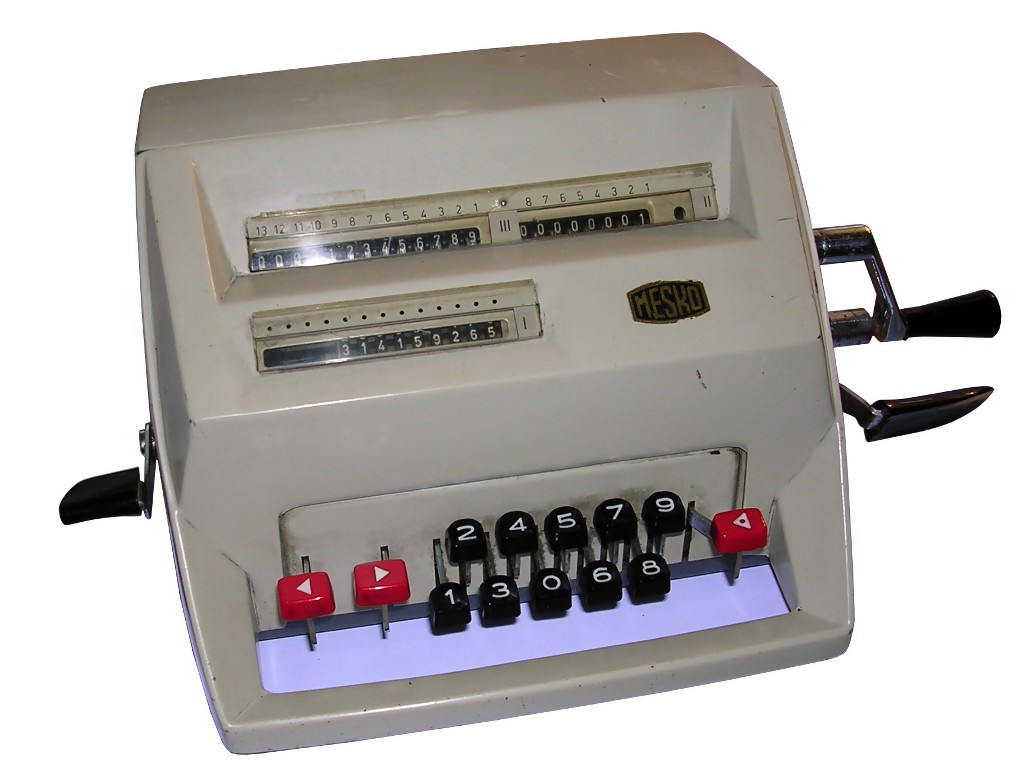

General view Levers Keyboard

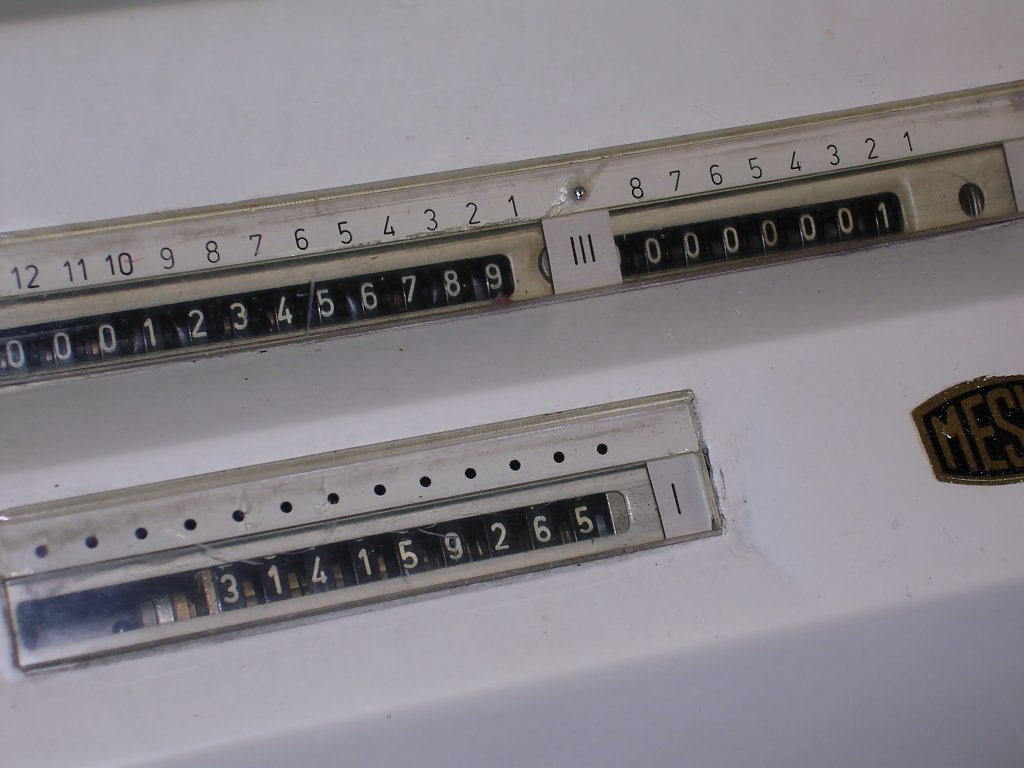

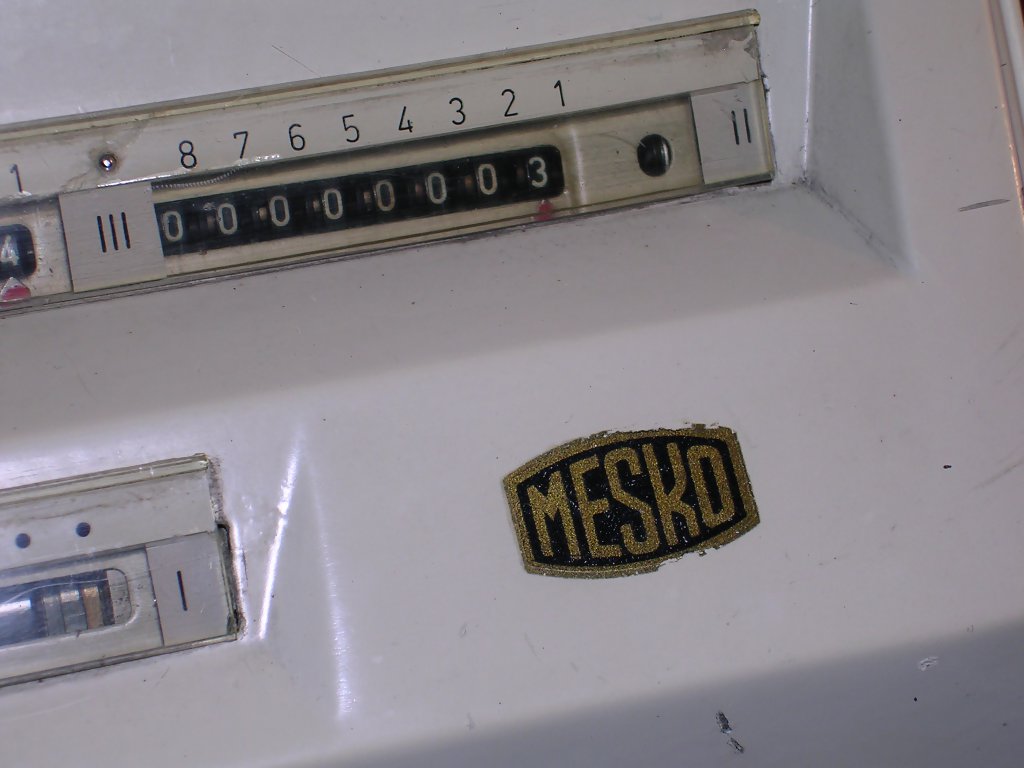

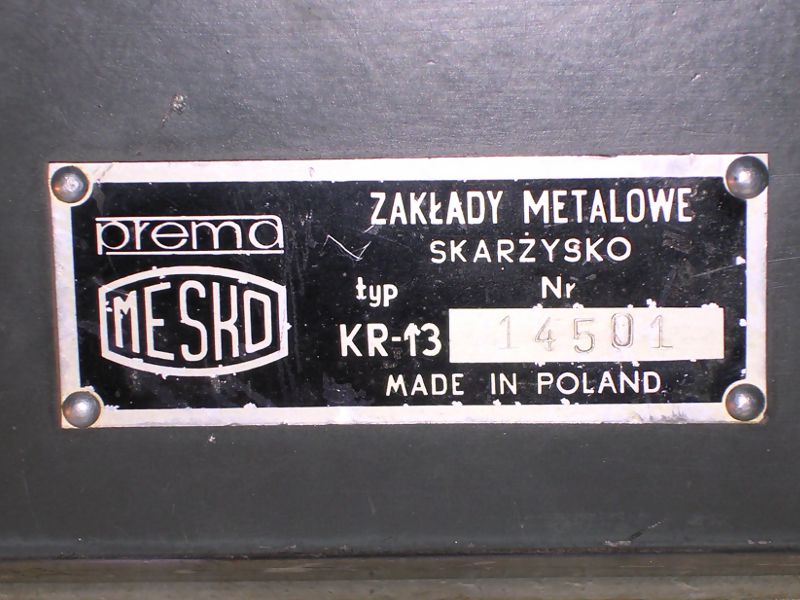

Counters Manufacturer sticker Manufacturer's plate on the bottom
