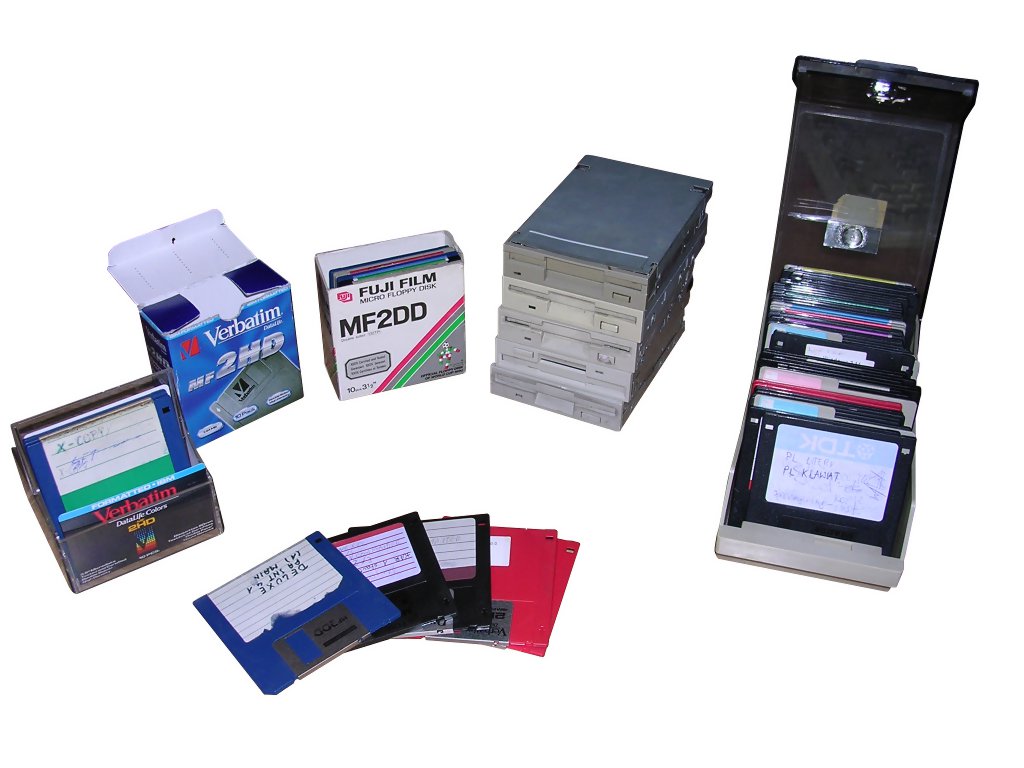

				  Disks should be stored vertically in a box.
				Leaving them horizontally one on another is not a good solution.
				Some disks had plastic transparent foil sleeves in which they could be stored for
				longer time, but they aren't popular now. Before inserting disk
				to the drive sleeve should be removed,  if not, drive will
				be jammed. If you try to use higher
				density floppies in lower density drives (like PC disks in
				Amiga), you may have problem: Data written in higher density
				drive will be usually readable, but erasing them and writing
				data in 720K drive may cause errors.
				Why? Higher density drive has stronger head, writing bits
				stronger. Weaker head can't remagnetize higher magnetized
				surface.
				There's only one solution: To use 1.44MB drive formatted disks only to put
				data TO low-density drive system, but write on this system to
				completely magnetically blank disks (after formatting in
				low-density drive), these disks should be never written with a
				higher density disk drive.
				Making these blank disks is easy: Just demagnetize the disk
				entirely. To do it, you can use AC electromagnetic coil or even
				transformer soldering iron. Standing 2-3m away of media power
				electromagnet or soldering iron on. Slowly move it near the disk,
				make few swinging/round moves few centimeters near media. Repeat
				it for about 30 seconds, may be longer, but DON'T TURN IT OFF.
				Before turning off move coil/iron 2-3m away from media, or it'll
				stay magnetized some way. In general, older disks
				of good manufacturers may be better and may have less errors
				than newest, as manufacturers decided to push floppies away from
				market as fast as possible by manufacturing poor media.
				To read a PC disk to a computer for archiving purposes, you
				should use an old PC with DOS (Norton Commander's "Copy Disk->To
				Image" or RawRead), Windows 9x (WinImage or RawRead) or even
				Linux (dd utility, think before you type!), but avoid using
				WinXP and later systems. These systems have very poor floppy
				disk drive handling routines, probably to make users not use
				floppy disks and buy USB flash drives. This will give you many
				problems, false read errors and other things like this. USB
				floppy drives are even worse - they are slower and won't read
				old disks reliably. Forget about 720K or XDF, even DMF format
				with USB drives - most of these won't read it, some may even
				damage disks.
				Apple computers may use USB drives (tested in Mac OS X 10.4 and
				my PowerPC G4 MDD), but not for lower-density disks - These
				disks may become irreversibly damaged instantly after
				inserting to USB floppy drive, even with write-protection tab
				set! Of course floppy routines in Mac OS X 10.4 are even slower
				than in WinXP. Many times you'll get few "tries" to read a disk
				every second, this is completely normal thing. Unmounting a disk
				2 times is quite normal.  |





						OK, let's talk about technical details. 5.25" drives
				used different technologies, 3.5" drives are very similar to
				each other. They all (except some early models) use worm-screw

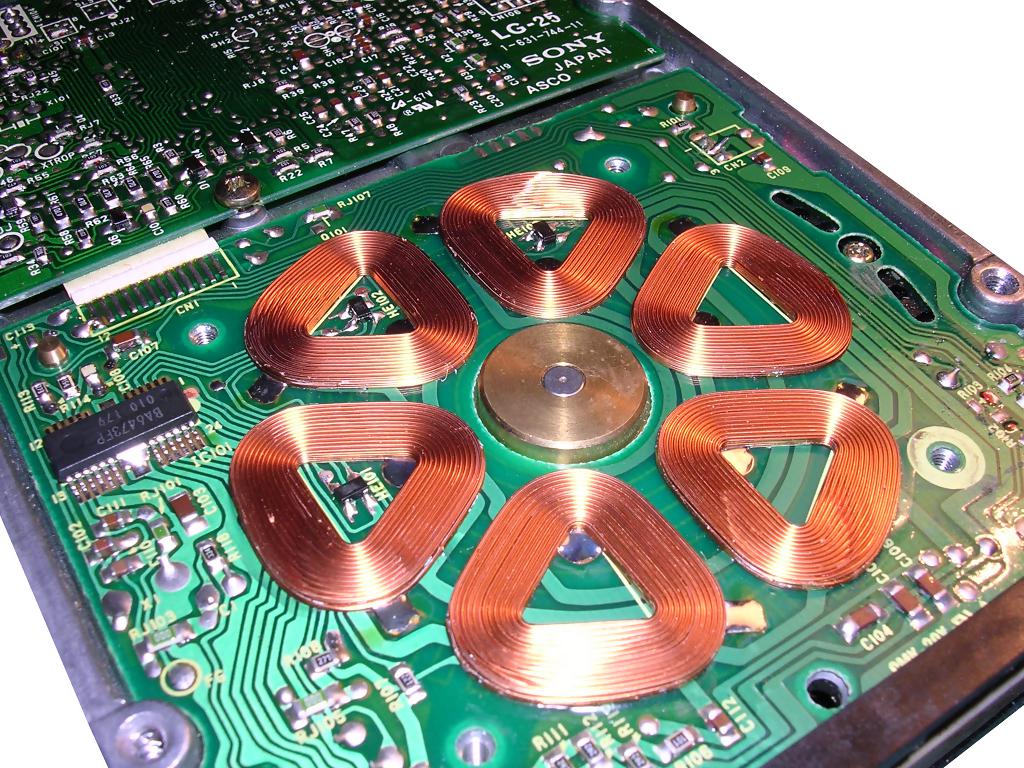

				shaft and stepper motor to move head assembly. To spin disk, a
				motor installed in PCB is used (see photo). Optical bariers are used
				to detect end positions of head assembly, but to detect write
				protection tab mechanical switches are used.
				In electronics, you'll find a standard drive number jumpers (always
				set to D1 in all PC drives), sometimes READY/Disk Change jumper.
				More jumpers are used only in earlier models. |

						  |





						  |

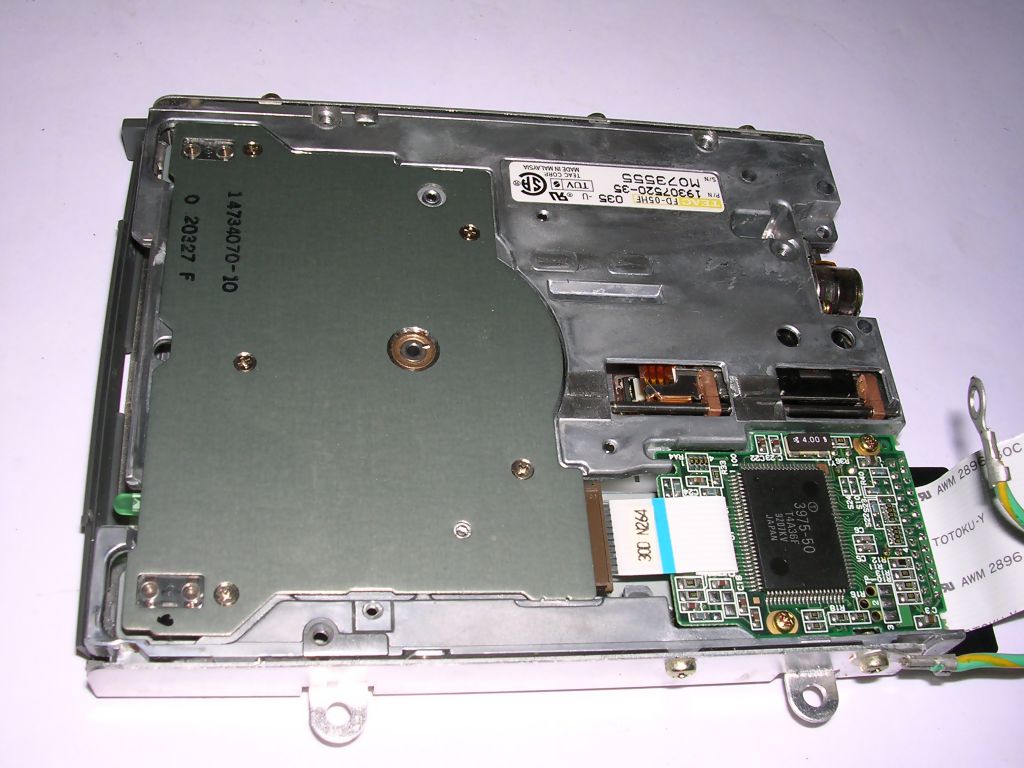

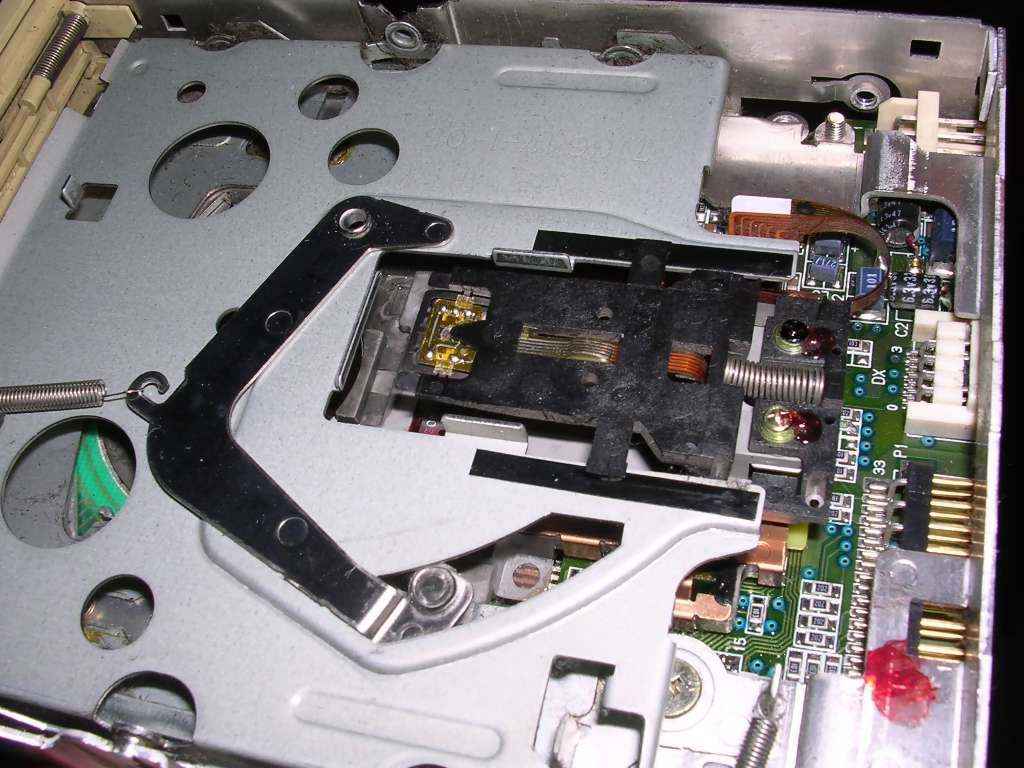

						[2019] On the left, we can see an
						interesting exception from the rule. This drive,
						manufactured by Nec in early 1990s, is very thin - like
						3 disks stacked on each other. It was used in some
						notebooks and thin clients first, later units got a
						typical 3.5" brackets and were used in PC. Because in
						such small space it is just impossible to put a stepper
						motor for head assembly, this unit uses a voice coil
						mechanism like in some HDDs, but mounted right to
						printed circuit board. As this mechanism has no
						transmission, it is really silent and it's not easy to
						hear head moving in this drive. |





						  |

						  |

						  |


						| Typical 3.5" drive - front view |

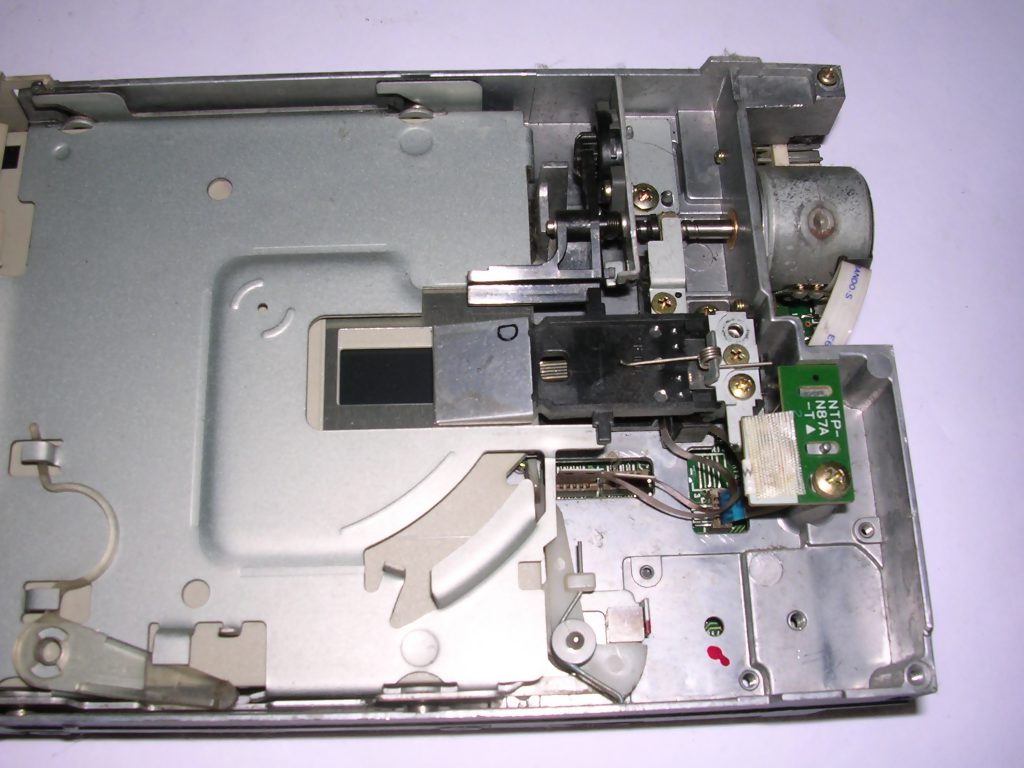

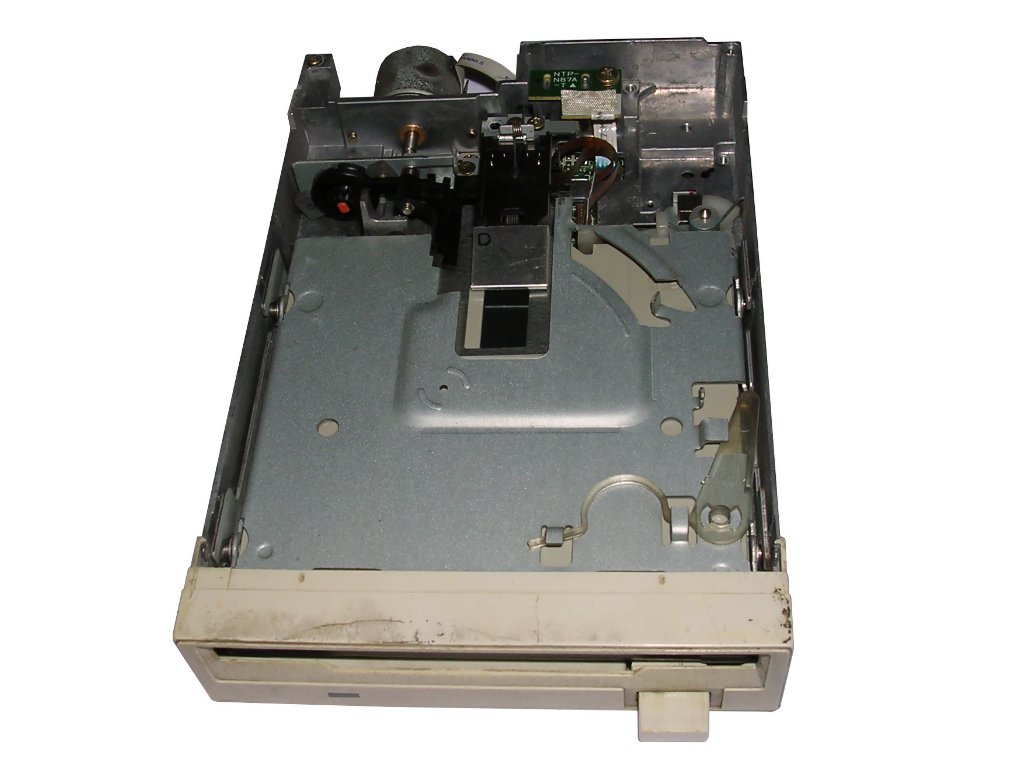

						Head assembly, disk inserted |

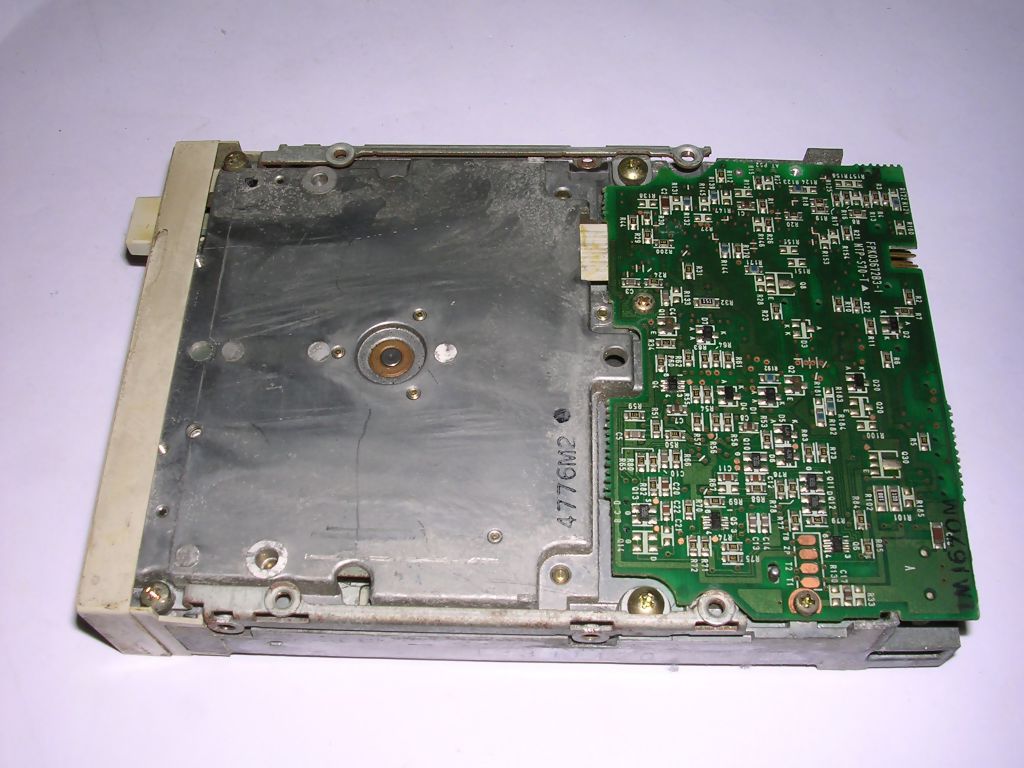

						PCB and motor assembly. |



						  |

						  |

						  |

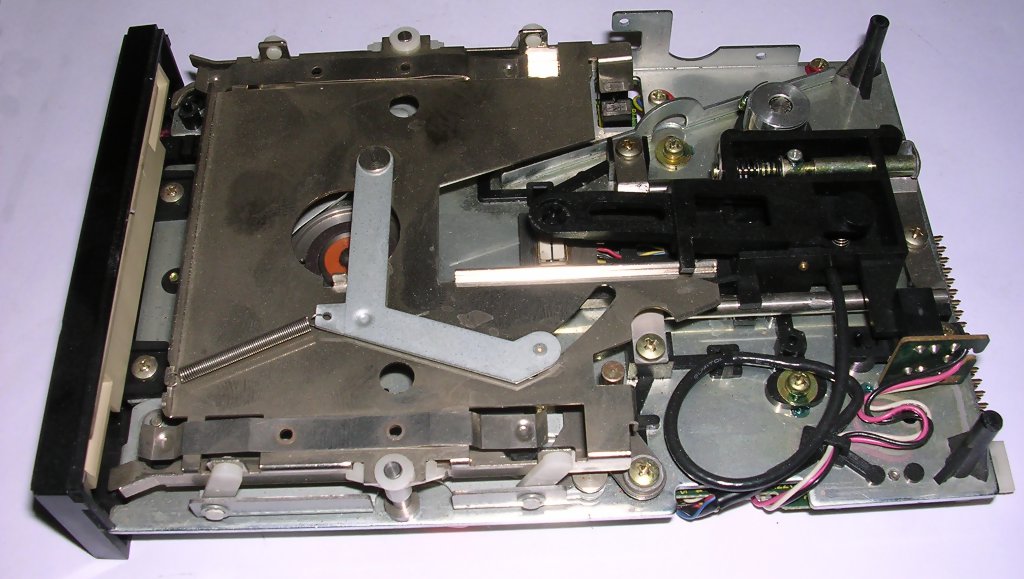

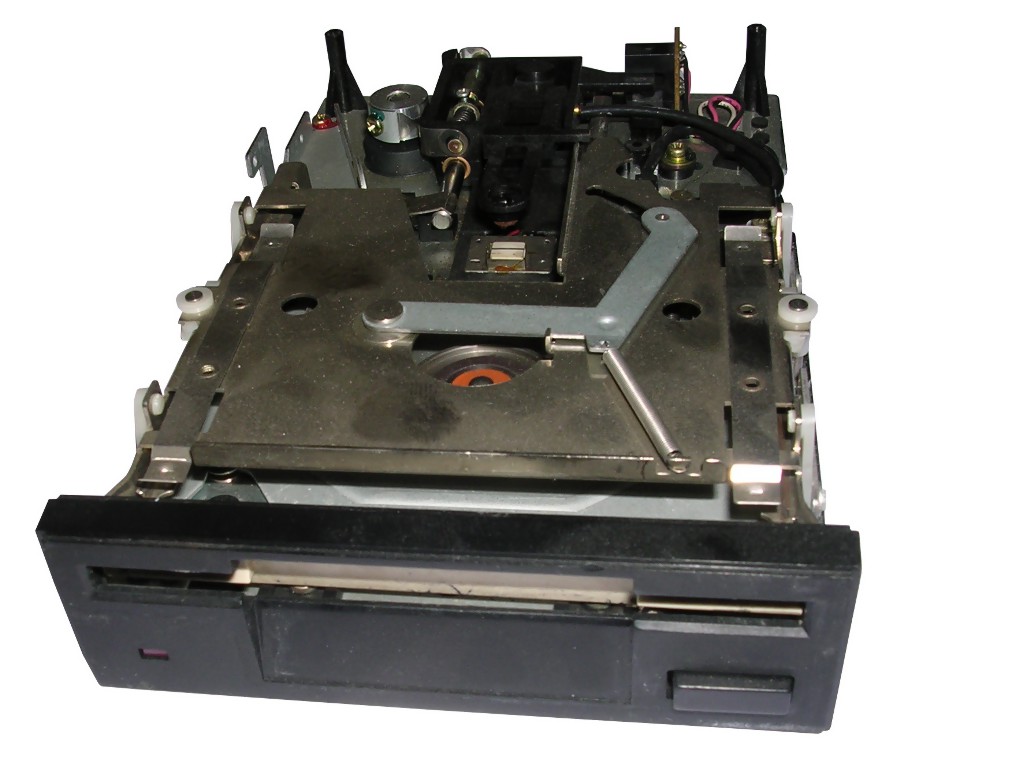

						| Early 3.5" drive - it's a bit higher |
						Motor and metal tape mechanism |

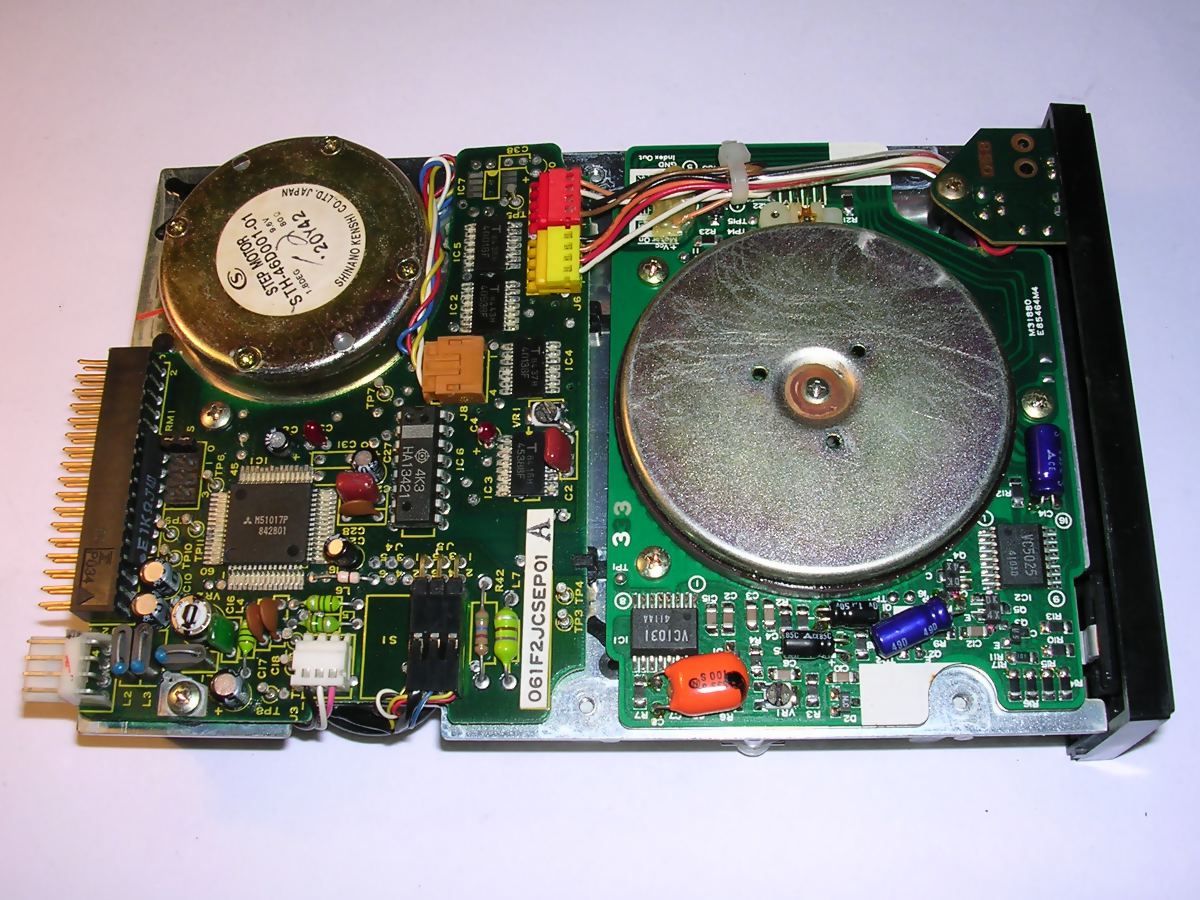

						More electronics than in later drives. |



						  |

						  |

						  |

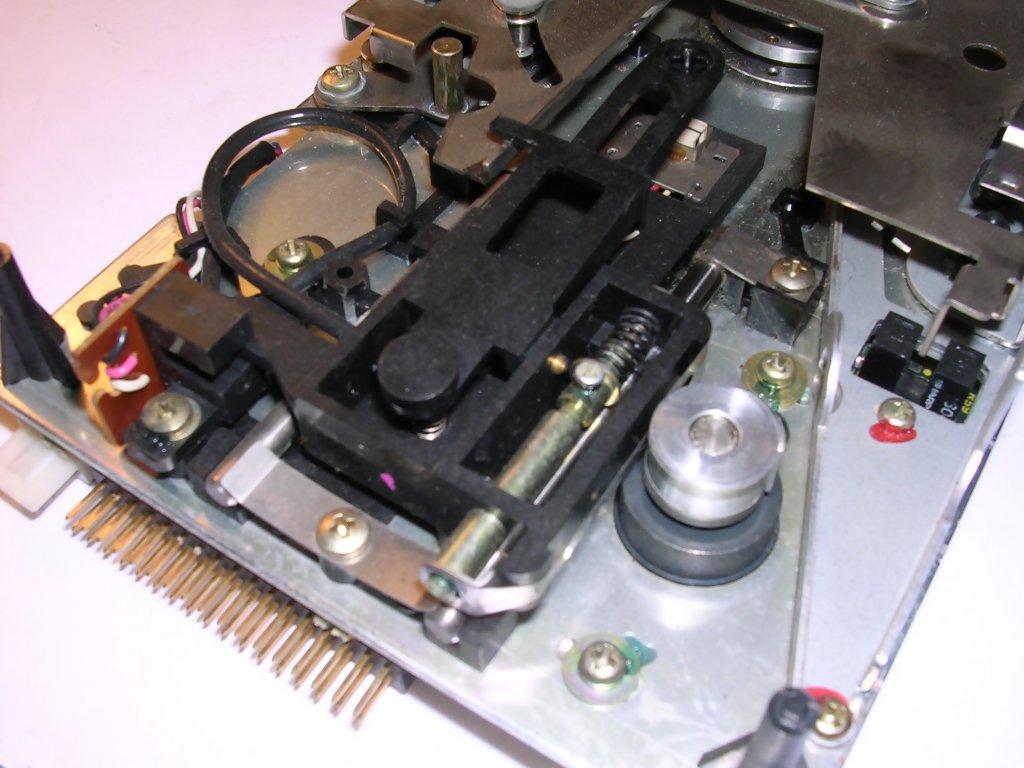

						| Head moving assembly detail, stepper motor and metal
						tape can be seen. |

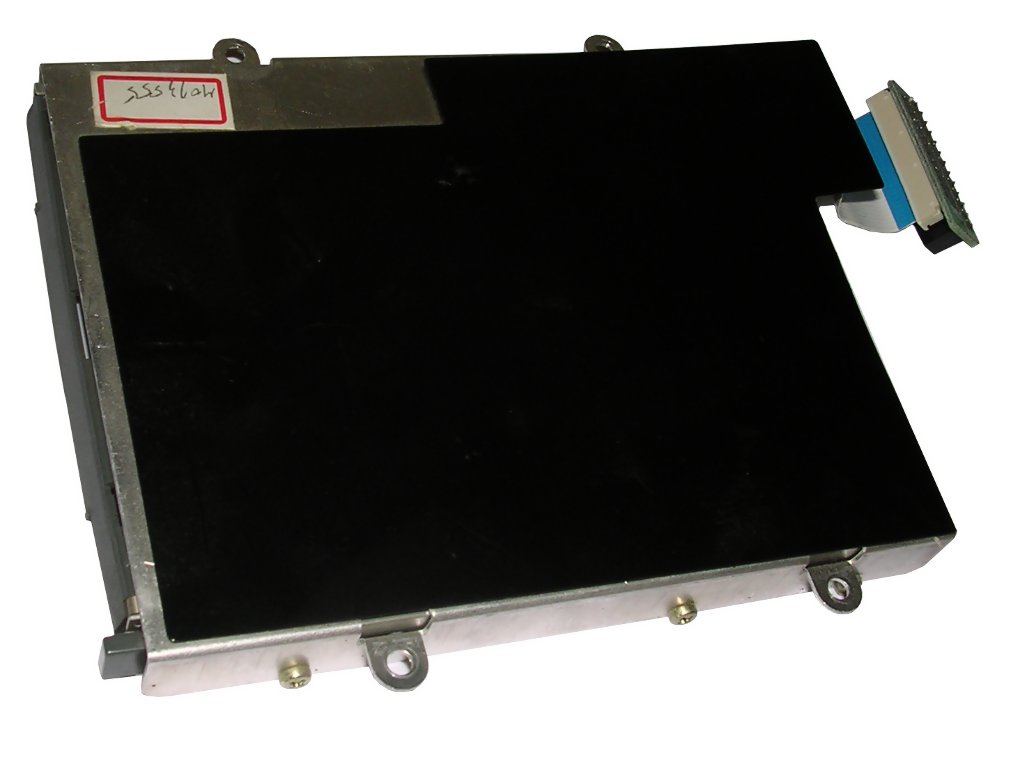

						Small, Notebook drive, from Zenith notebook computer. |
						Everything is smaller in it. (small cyilnder on the
						left is stepper motor. |



						  |

						  |

						  |

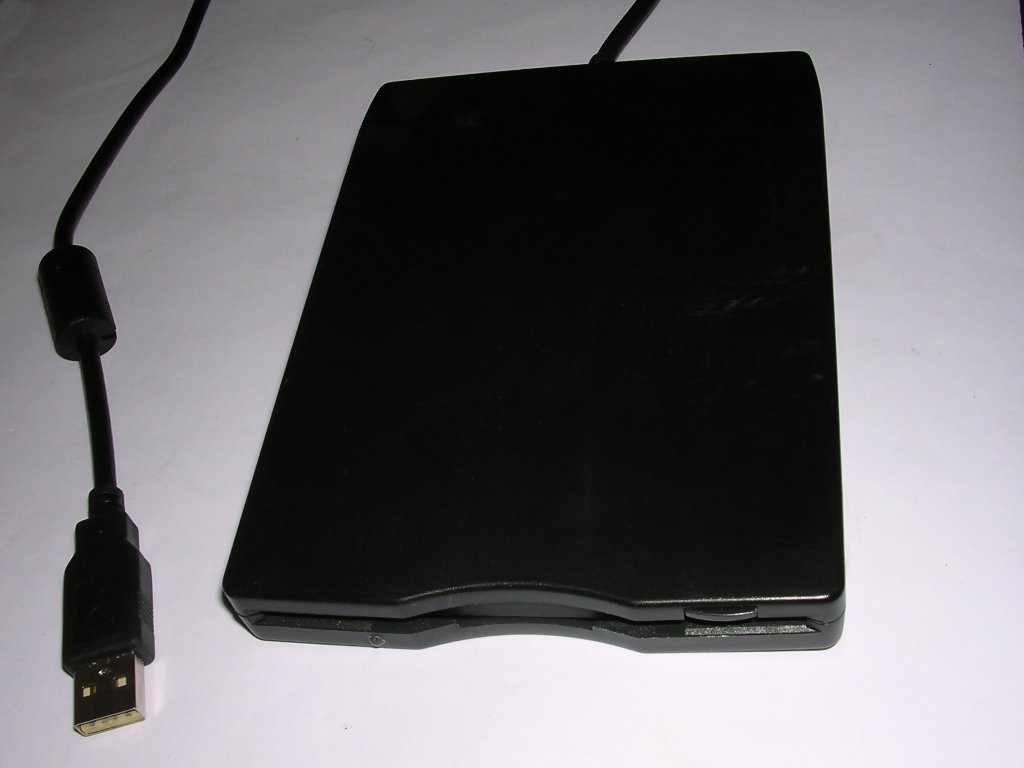

						| Modern USB floppy drive |

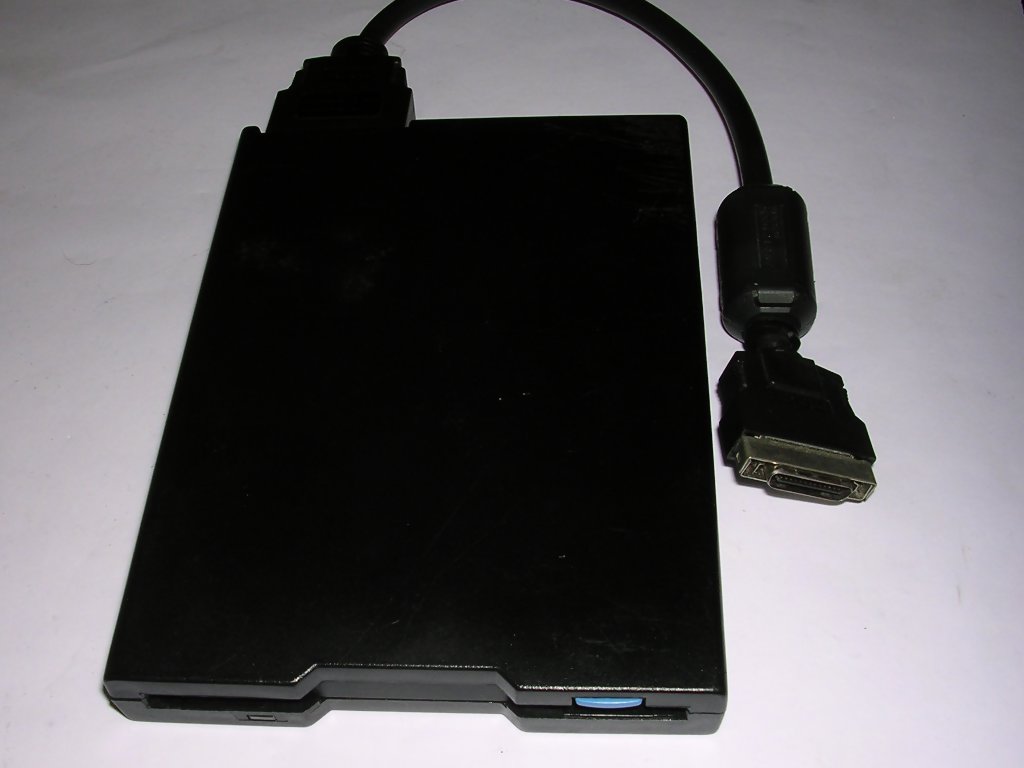

						External FDD for IBM ThinkPad notebook computer. |

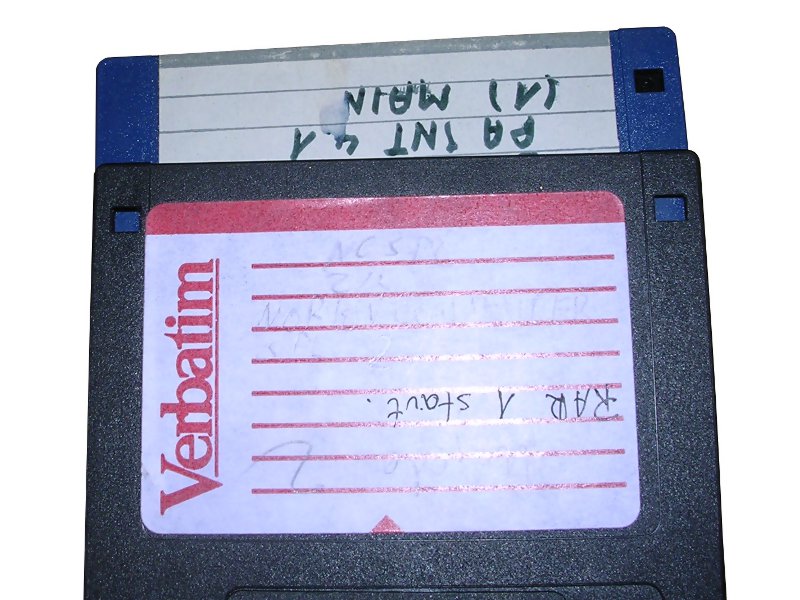

						Difference between 1.44M and 720K (left hole) |



						  |

						  |

						  |

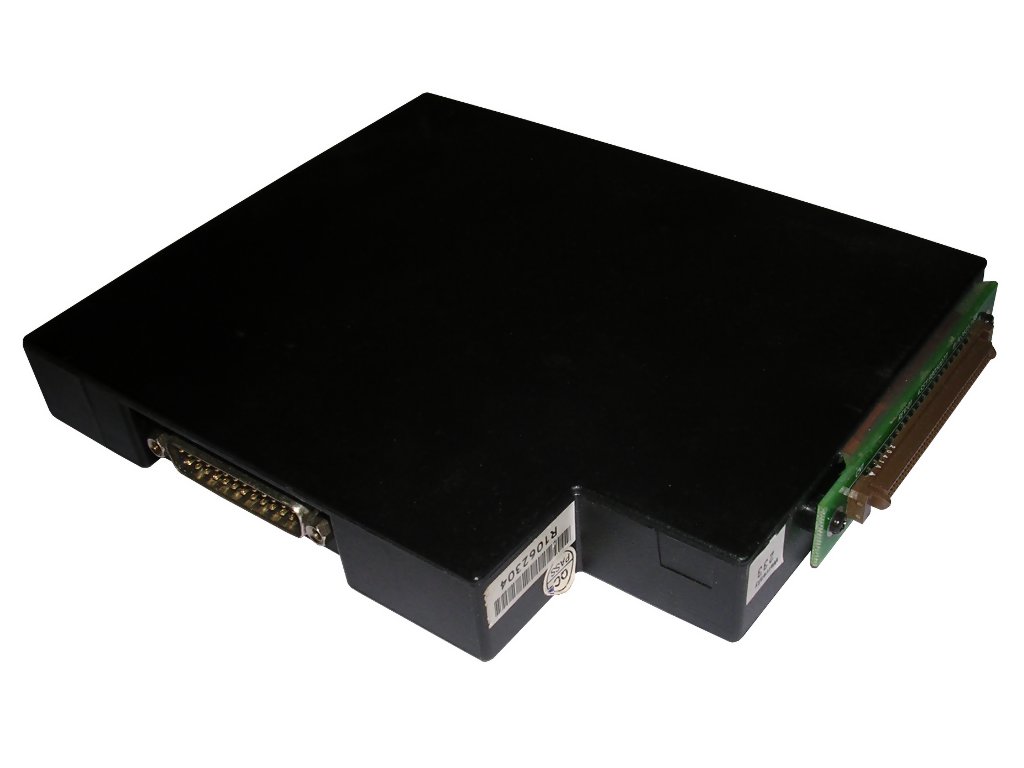

						| External/Internal drive for Rocky II
						industrial ruggedized notebook. With rubber protection
						it can be waterproof. |

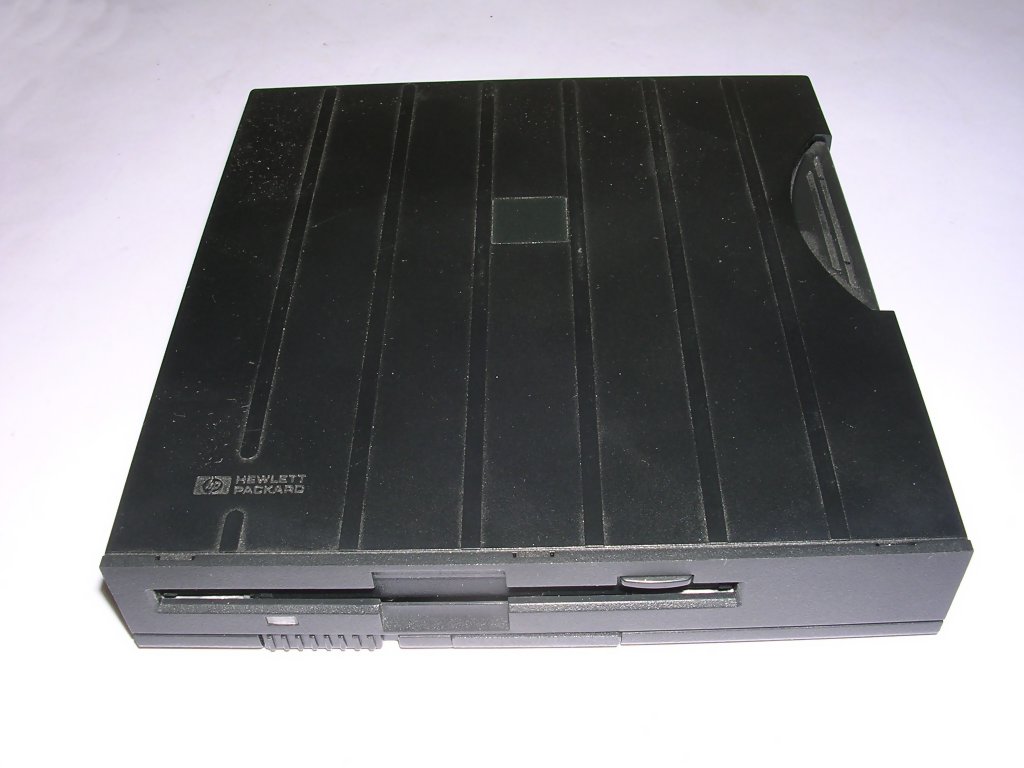

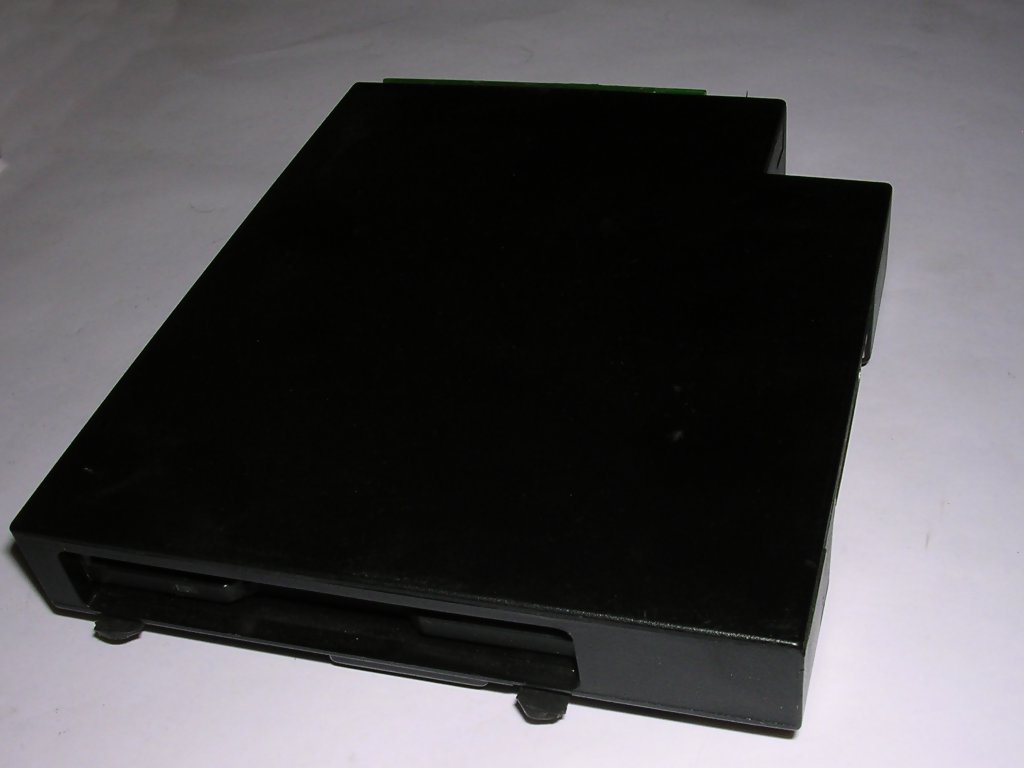

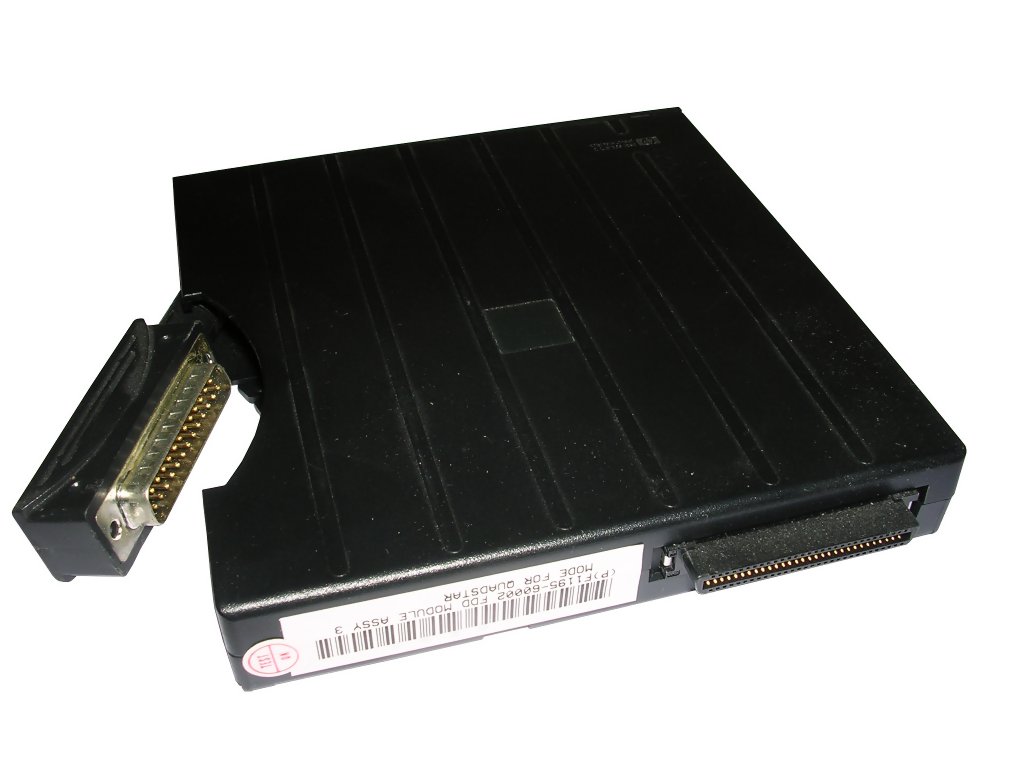

						External/internal FDD for Omnibook 2100ct notebook. |



						  |

						  |

						  |


						| Omnibook drive can be connected to computer's
						parallel port (onmy Omnibooks have this port modified). |

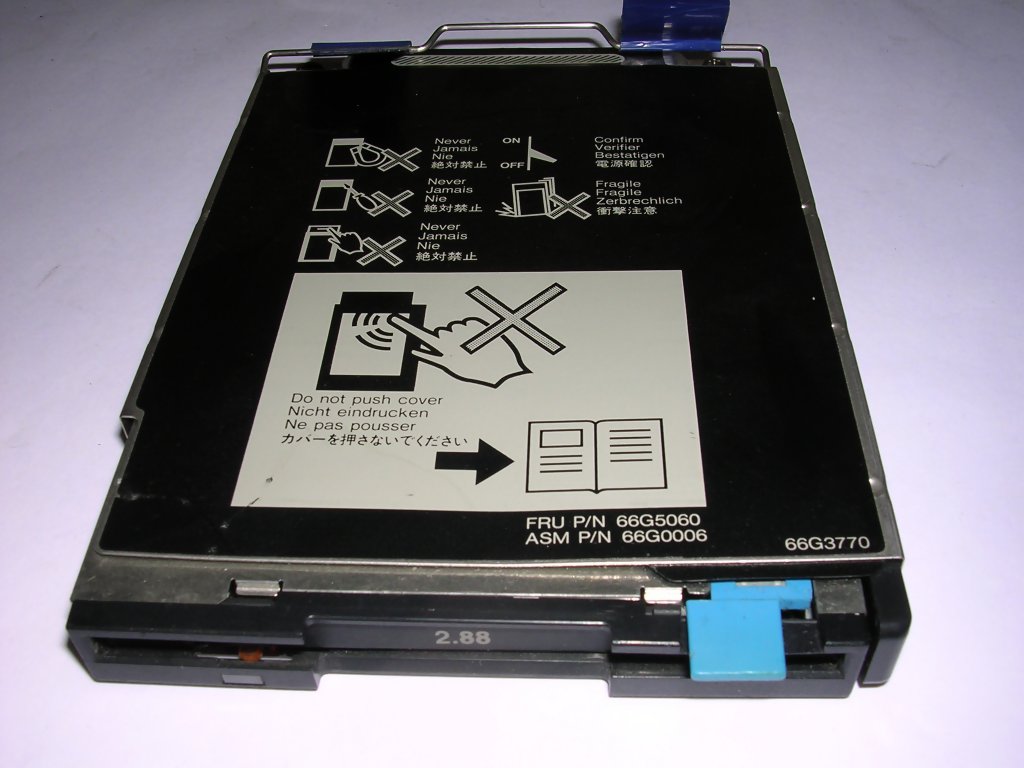

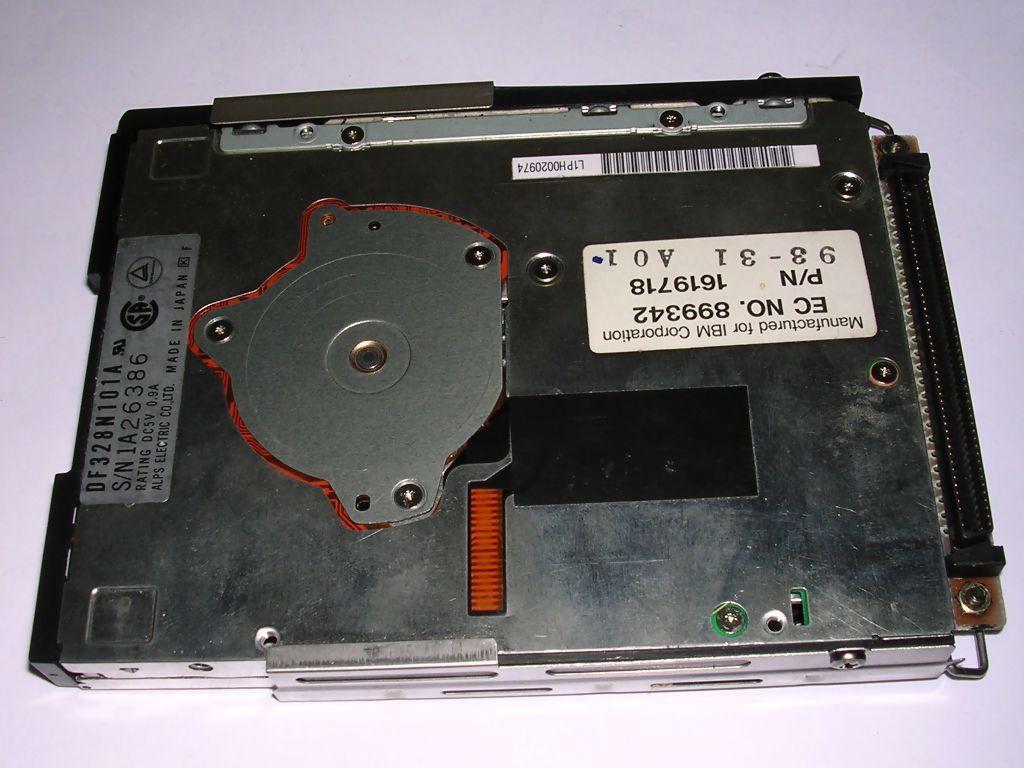

						3.5" internal drive for IBM ThinkPad
						notebook computers. There were 1.44M and 2.88MB models,
						this one is 2.88MB. It could be installed in the same
						bay as CD-ROM drive. |


				 |
